VP22 Welrod

vp22 bolt action pistol 3d printed

VP22 Welrod STL Files

Bolt action .22 pistol inspired by the British Welrod Mk 1

VP22 Bolt Action Pistol Details

From the developers of the mp22k, Gun Cad Ideas brings us the release of their latest design, the VP22.

This unique pistol is a bolt action, magazine-fed, optionally suppressed firearm chambered in .22 caliber. Inspired by the British Welrod Mk 1 pistol, the VP22 is designed for point-blank or very short-range shooting.

Shop Husky Armory

Despite its “close up” design it still maintains reasonable accuracy up to 25 meters. The VP22 is a piece of history and deserves a place on every 3D gun printer’s wall.

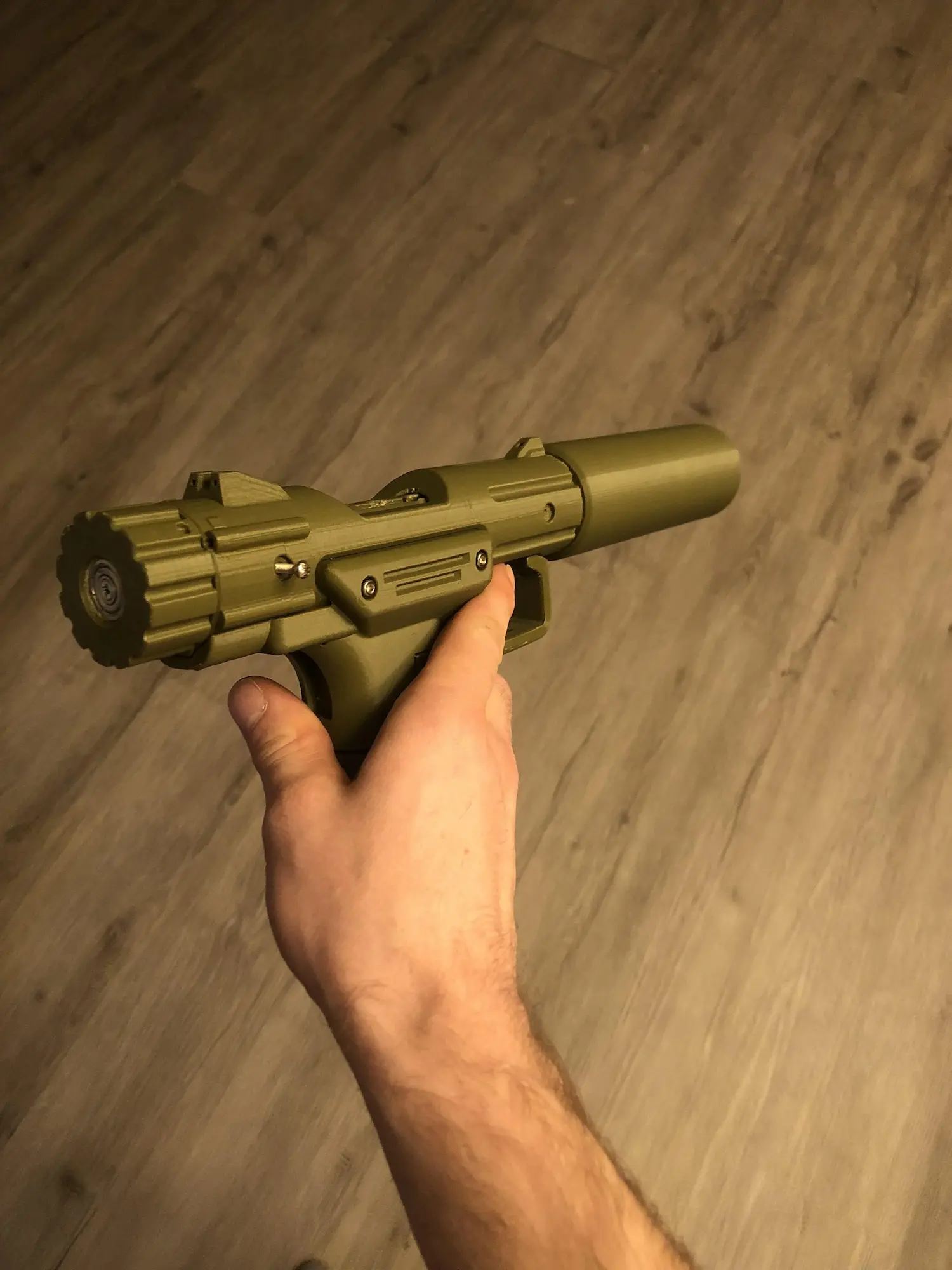

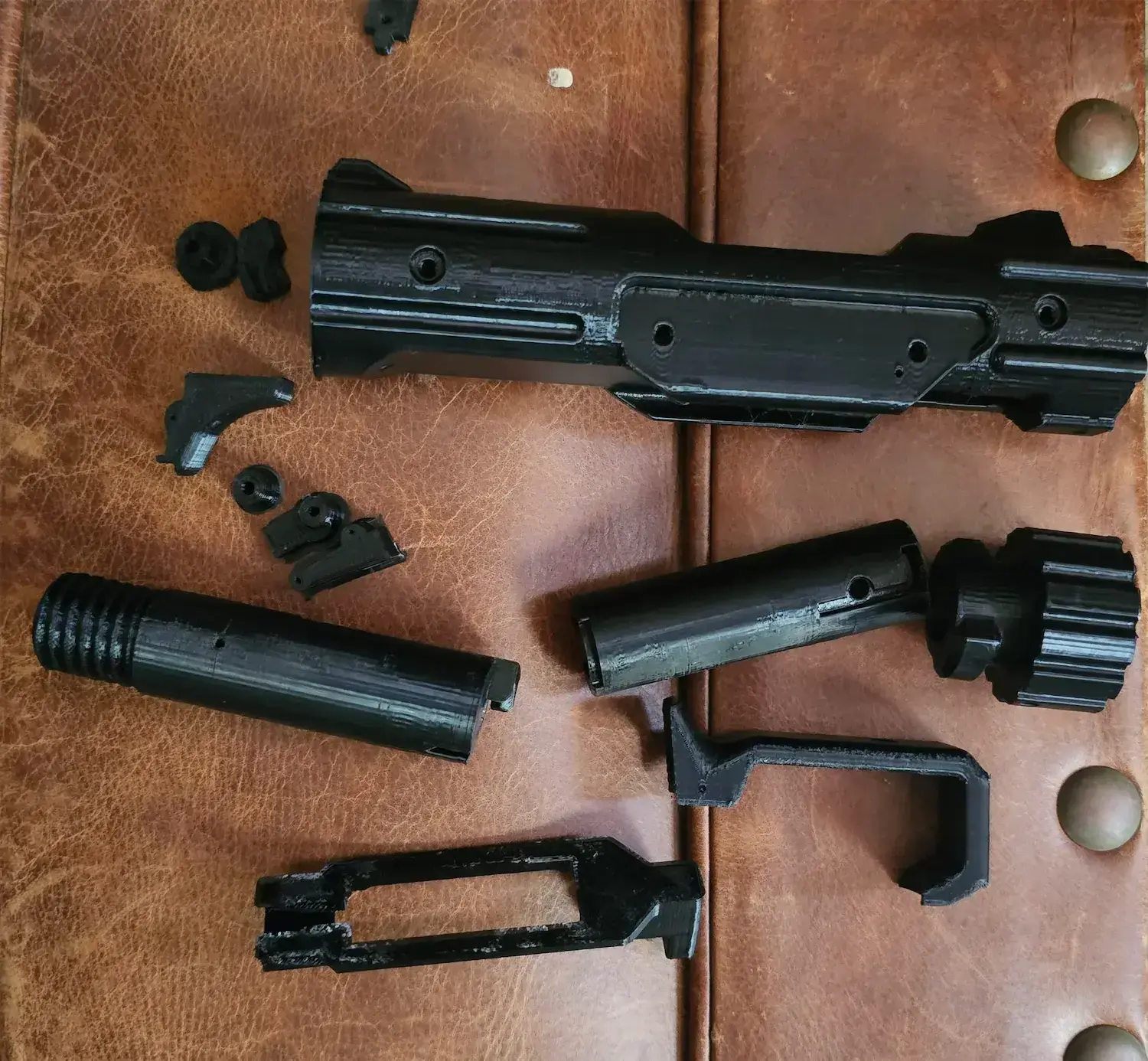

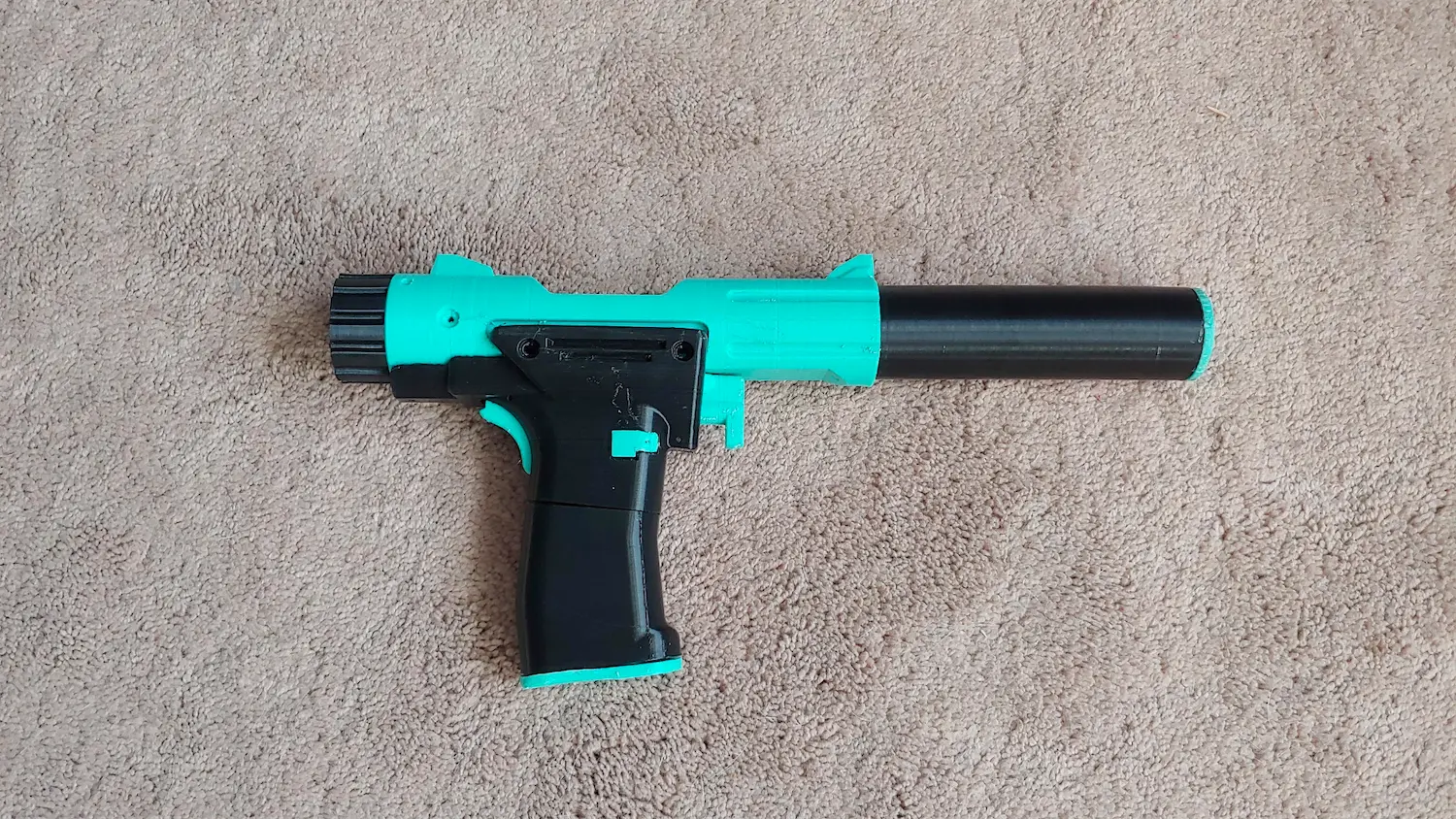

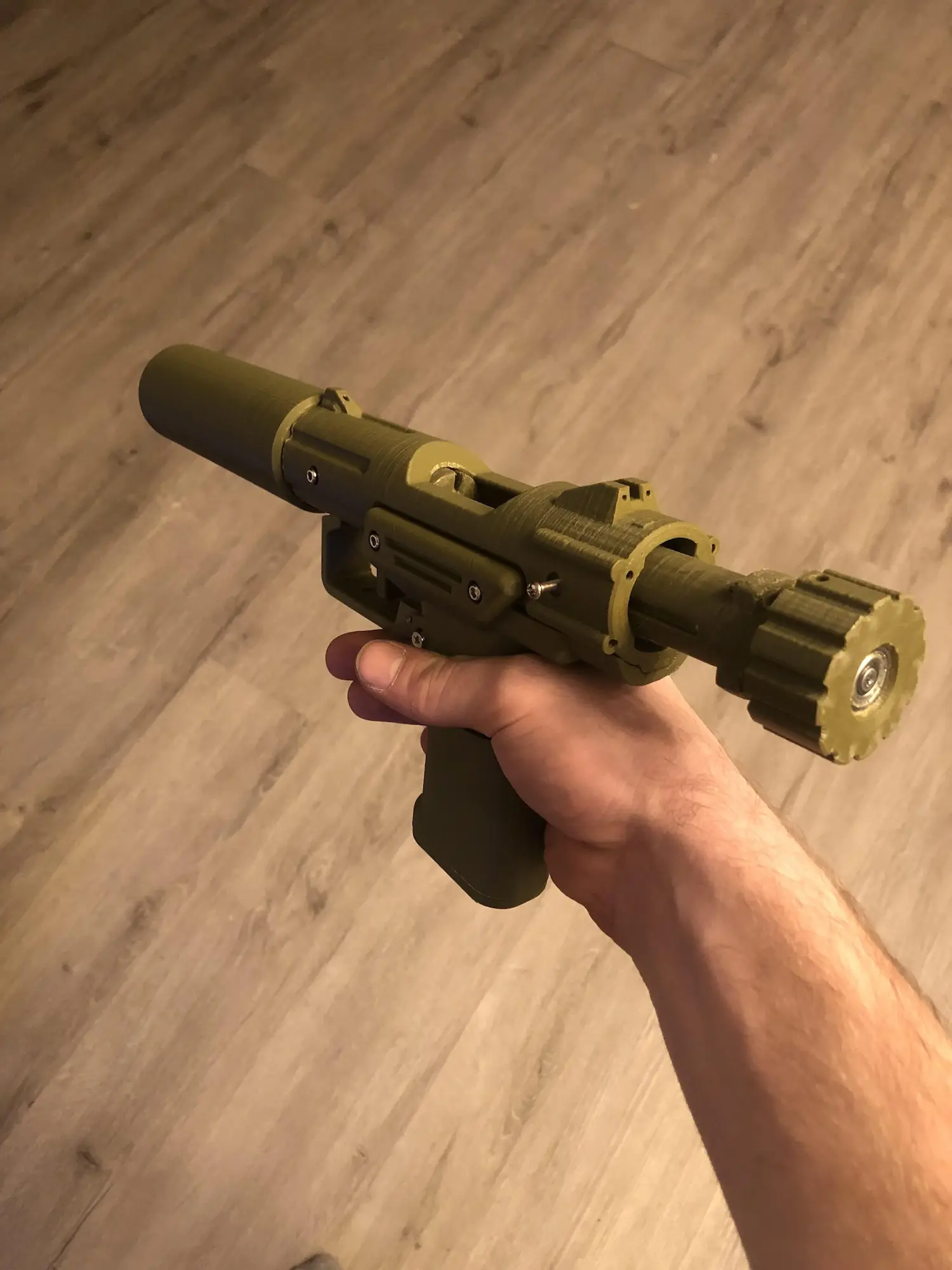

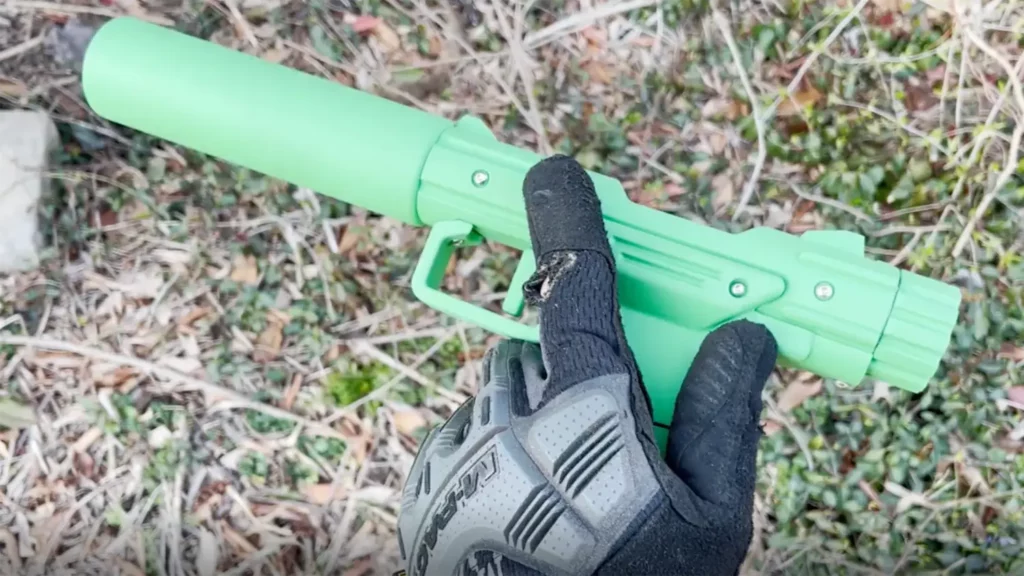

VP22 Bolt Action Pistol in the Wild

Photos

Video

VP22 Bolt Action Pistol Tech Specs

The VP22 (Weld Rod) style bolt action pistols design includes a grip safety and an integral magazine, allowing for a compact package that can be fired without the grip/magazine.

The VP22 fires affordable and accessible ammunition such as 22LR Subsonic or 22LR CCI Quiet

This pistol produces minimal noise, and it can be easily printed using less than .5kg of filament with only one part needing supports.

Required Parts for the VP22

Prerequisites

  • Filament
  • 3D Printer
  • 22 liner .305, .315, .375OD

Hardware

  • 1/8″ steel shaped for breech face
  • 2x m3x10 coutersunk for magazine base (heatset optional)
  • CMMG/Scarpion magazine spring/ 11/32″ OD 9/32″ ID
  • 3x m3x8 for the rear of upper (2 for bolt retention, 1 for connection to the back of lower with heat set optional)
  • 6x m3x12 (4 lower to upper, 2 barrel into upper with heat set optional)
  • 1x m3x8 countersunk for trigger guard
  • 1x m3x30 magazine button
  • 1 small spring for the mag button
  • 6mm with 1mm wire spring cut to length for trigger and .6mm wire for the grip safety

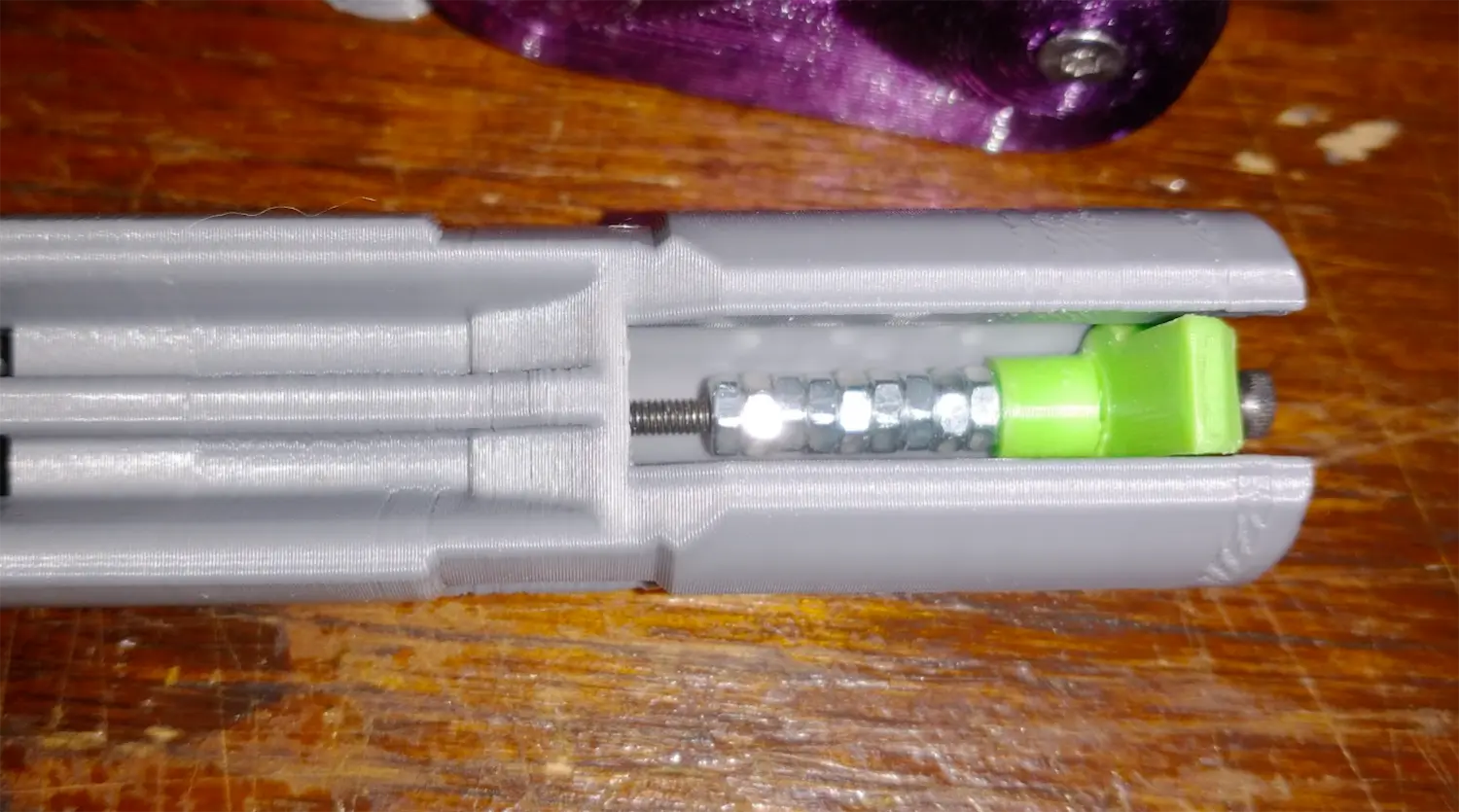

  • 1x m2.5×50 screw and about 10 nuts for the striker (or other weight as long as it’s above 3g in the end)
  • 1x 1x10x37 striker spring (Harlot spring is 1x10x50, I cut mine to 11 coils)
  • 1x m3x4 and heat set for extractor retention
  • 1x m3 heat set for threaded bolt cap (for bolt handle screw)
  • 1x m3x45 screw for the bolt handle
  • 2x 688zz bearings for the bolt handle
  • 1.5mm music wire for all pins
  • 4x m3x30 with cap cut off metal epoxied into the rear of the receiver

Tools

  • Hand drill
  • Allen key set
  • Screwdrivers
  • Armorer hammer
  • Basic punch set

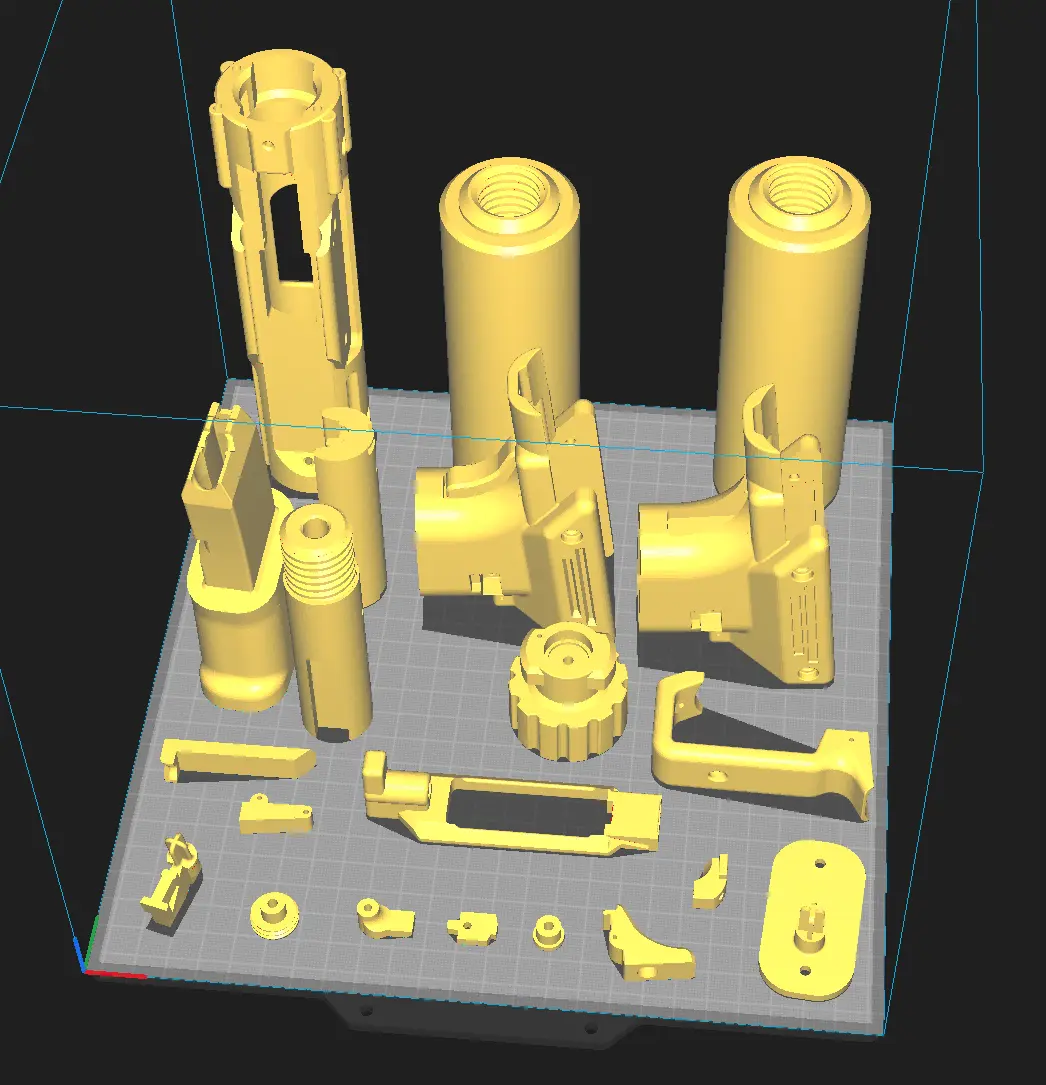

Suggested 3D Printed VP22 Settings

PartMATERIAL INFILL %LAYER HEIGHTWALLSASSEMBLYSUPPORTS
UPPERPLA+100.12-.26UPPERNO
TRIGGERPLA+95-100.12-.24UPPERNO
SEARPLA+100.12-.24UPPERNO
FRONT BOLTPLA+100.12-.26BOLTNO
REAR BOLT HANDLEPLA+98-100.12-.26BOLTNO
BOLT PLUGPLA+100.12-.24BOLTNO
STRIKER CARRIERPLA+100.12-.24BOLTNO
HANDLE BEARING PLUGPLA+100.12-.24BOLTNO
BARRELPLA+100.12-.26BARRELNO
FEED RAMPPLA+50-95.12-.24BARRELNO
FAKE CAN OR LINEAR COMPPLA+25.12-.26BARRELNO
LOWER STANDARD OR WEIGHTEDPLA+25.12-.24LOWERYES
TRIGGER GUARDPLA+50-95.12-.24LOWERNO
SAFETYPLA+50-95.12-.24LOWERNO
MAGAZINE CATCHPLA+25.12-.24LOWERNO
MAGAZINEPLA+25.12-.24MAGAZINENO
FOLLOWERPLA+25.12-.24MAGAZINENO
MAGAZINE BASEPLA+25.12-.24MAGAZINENO
FOLLOWERPLA+25.12-.24MAGAZINENO
BREECH PLATE STANCILPLA+25.12-.34BOLTNO

Filament

  • PLA+ (eSun, Polymaker Pro or stronger)

Bring back the WW2 British classic right on your Ender 3’s print bed.

The VP22 Welrod guide includes all of the files, hardware, and assembly instructions needed to hit the range. Give it a go and print your own mk 1 style Welrod pistol today!
