Sudy 23 & 23/52

Your SMG? Our SMG.

Russian 9mm fury never looked so good. The Sudy 23 & 23/52 is a fantastic release for those of you out there who like your PCC range day shenanigans with a side of history.

Based off the famed PPS-43, the lighter and thinner little sister of the PPSh-41, these twins are perfect for budget builders looking who aren’t afraid to venture beyond the comforts of ARs and Glocks (don’t worry, they still borrow a thing or two for convenience’s sake).

Known for their accessory work and their AR15K upper, Likestoshootstuff is a valued member of the Black Lotus Coalition and an experienced dev, and it shows with this release.

A relatively low barrier to entry is the whipped cream on top of this treat brought to us all the way from the Motherland, which is always a cause for celebration.

In The Wild

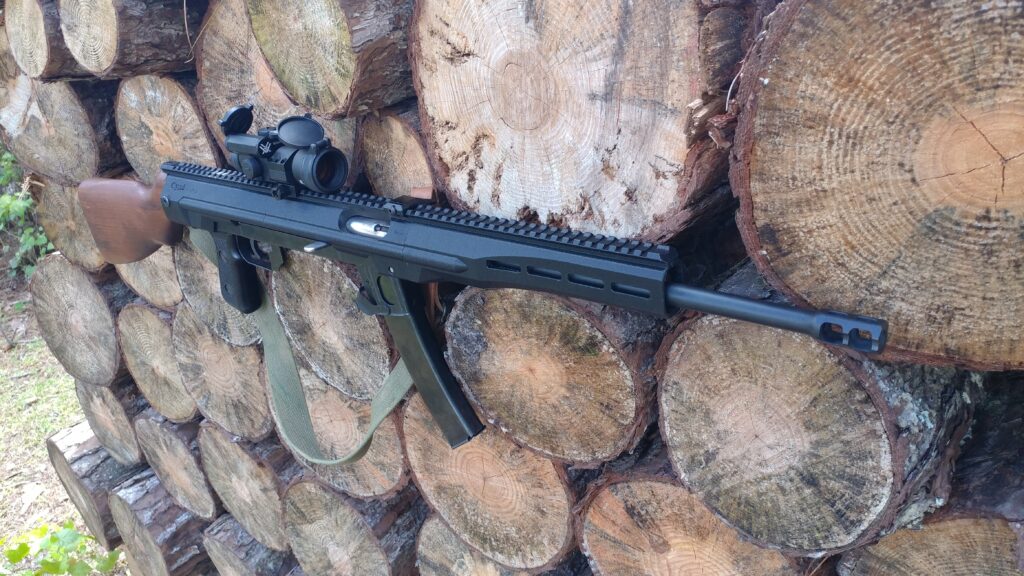

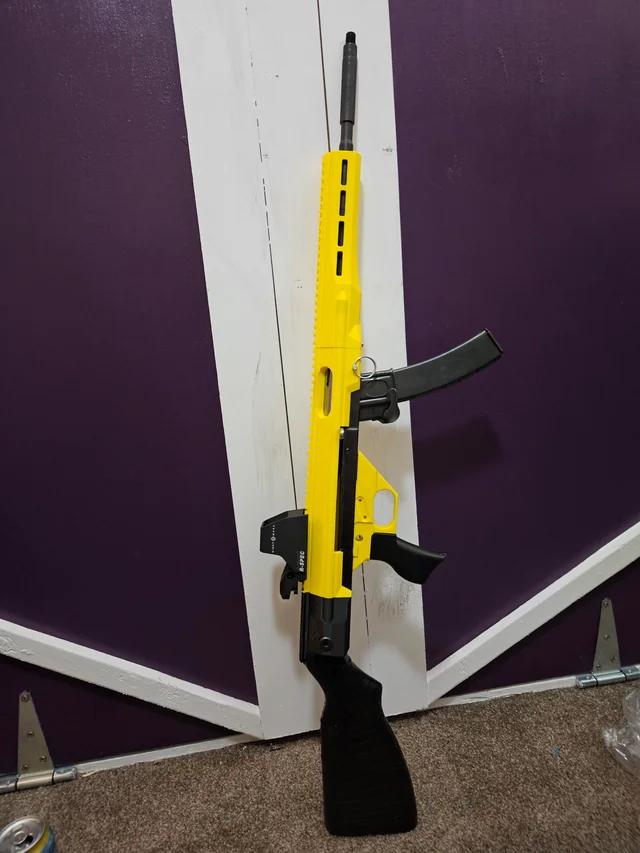

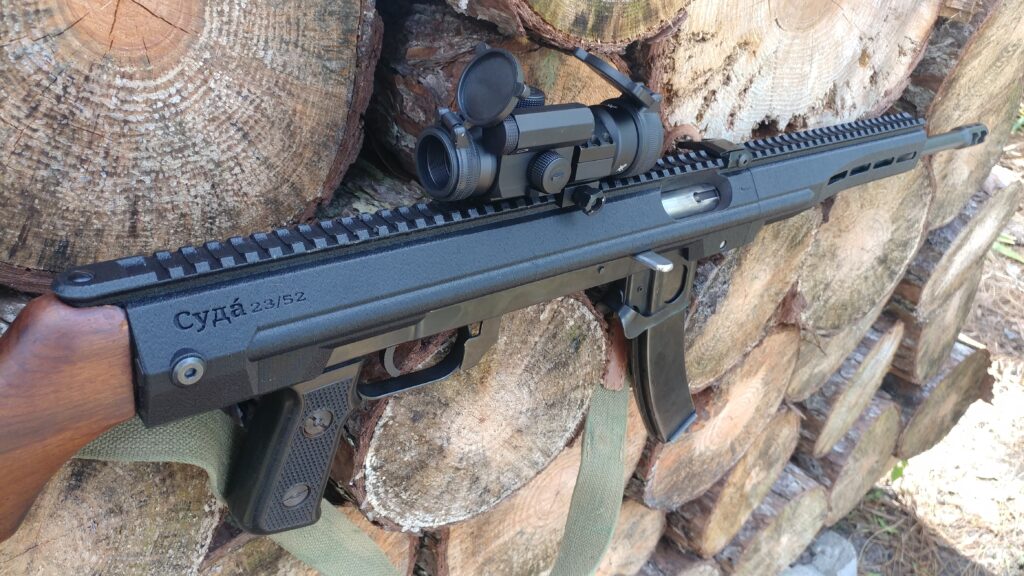

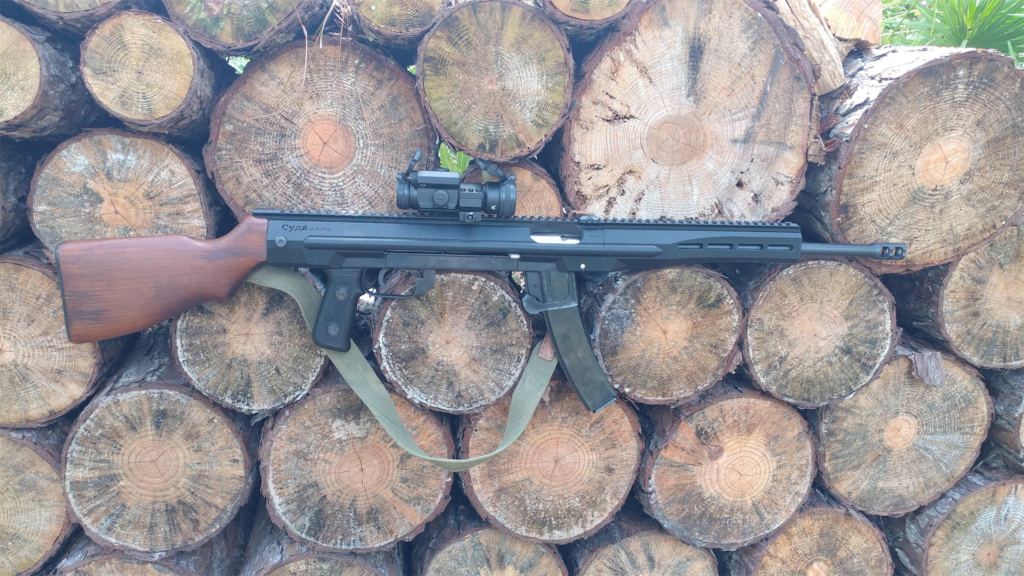

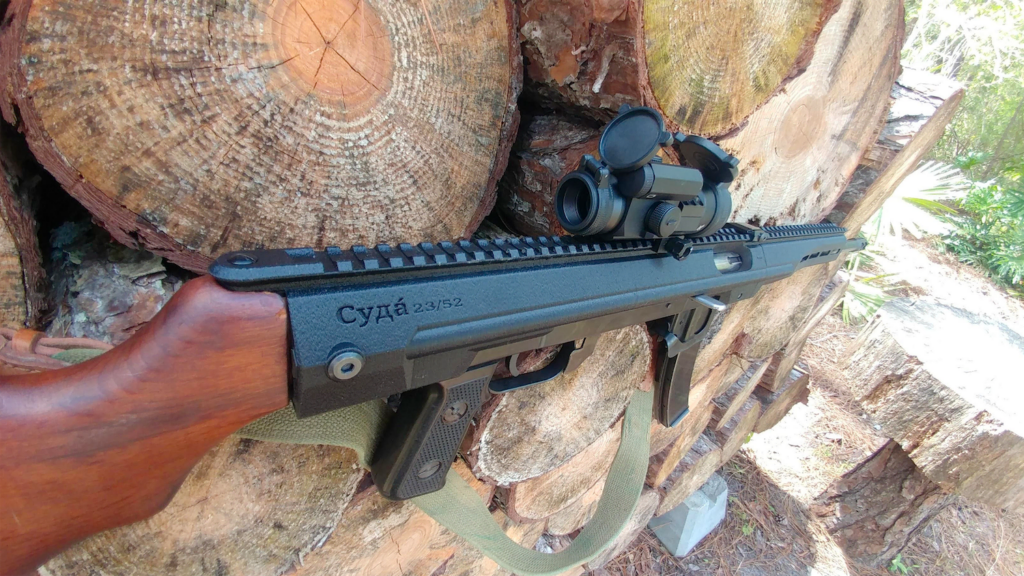

Photos

Videos

Technical Specs

The files are designed to accommodate PLA+ as a minimum, and documentation recommends specific print settings. Durability may vary depending on selected print settings and materials.

The design is meant to support PPS-43 lowers and makes use of an AR pattern barrel, as well as AR-15 fire control groups for semi-automatic versions. The semi-automatic lower makes use of hacksaw blades to create a deterrent against removing the denial bar in order to comply with ATF rules, which to my knowledge makes this release the first instance of what I’m going to call Hostile Engineering being used in a homemade firearm.

The file package includes a few extras, and additional documentation is provided for the different supported stocks.

Parts List

Components

• 1 – PPS43 Lower Receiver
• 1 – PPS43 Bolt
• 1 – PPS43 Mainspring/Rod/Backplate assembly
• 1 – AR-pattern 9mm barrel (any length)

Hardware

• 3 – ¼”-20 x 16 ½” threaded rods
• 1 – ¼”-20 x 2 ½” bolt
• 1 – ¼”-20 square nut
• 6 – ¼”-20 nylock nuts
• 4 – 6mm washers
• 2 – 3/32” x 1/2” roll pins
• 1 – ¼” x 1 ¾” quick release pin
• 2 – #8 x ½” flathead screws

Tools

• Drill and ¼” drill bit
• Dremel or angle grinder
• 7/16” wrench
• Hammer
• Sandpaper
• Scewdriver
• Calipers
• Punch set

A real blast from the past, the Sudy 23 and 23/52 are perfect to squat on full heels with. Download and build one today!
