Partisan 9 Details
The Partisan 9 is the latest and greatest iteration of JStark’s 3D printed pistol, the FGC 9.
With a slew of upgrades including an internal recoil system, folding stock, integrated suppressor and nearly every modern firearm upgrade you could dream up.
The beauty and technological progress brought to the internet via the Partisan 9 even makes the FGC-9 MK2 Stingray look like an antique.
Let’s take a look at the Partisan 9 in all of it’s jaw-dropping glory.
Partisan 9 in the Wild
Photos
Video

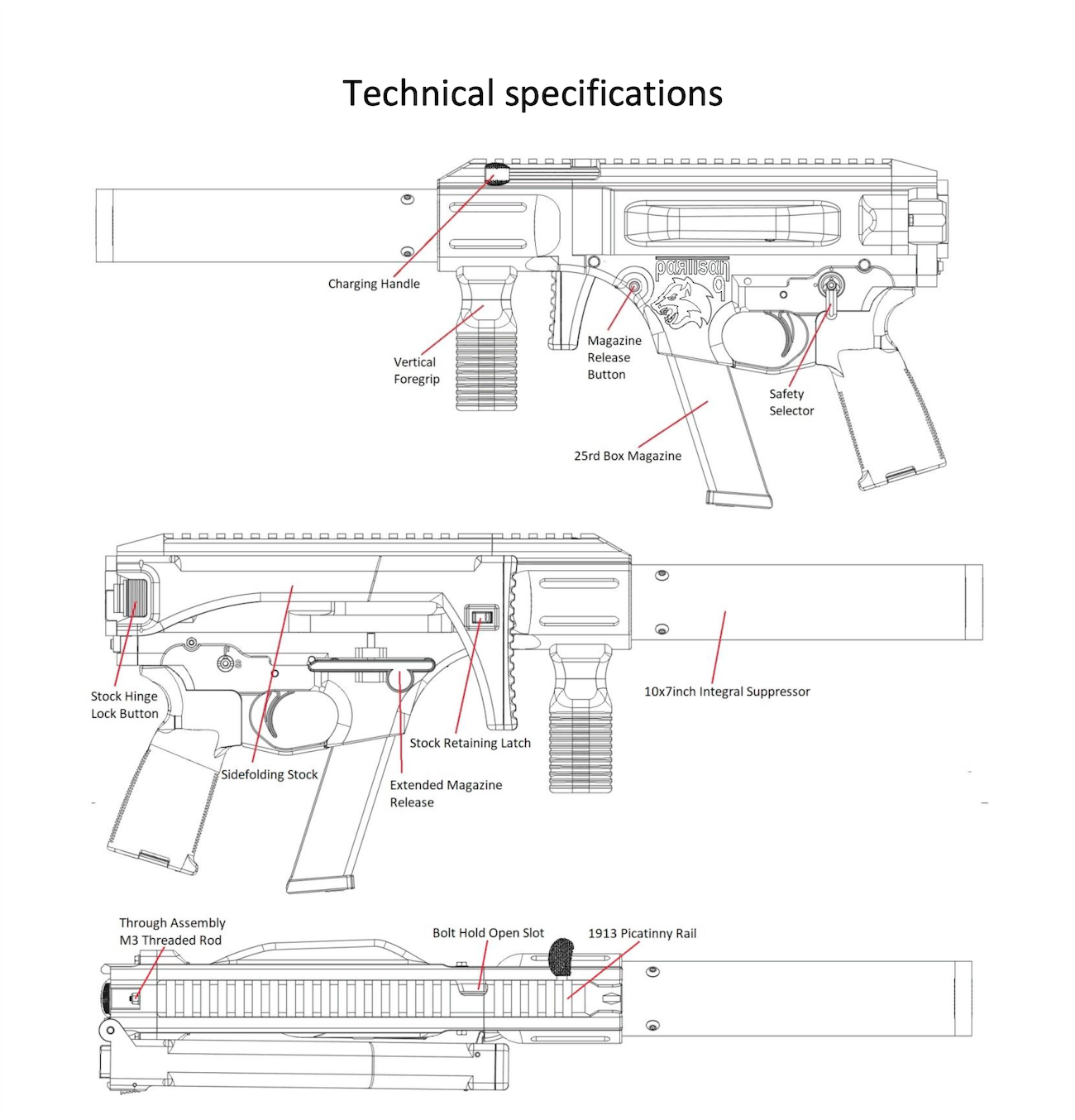

Partisan 9 Tech Specs
The Partisan 9 like it’s predecessor is built to be compatible with the most aftermarket and OEM parts making it dead simple to get your firearm built.
From Texas to Myanmar with enough determination, building the Partisan 9, is absolutely doable.
Type: PCC (Pistol Caliber Carbine) Designer: ImmortalRevolt Designed: 2021-2022 Weight(unloaded): 2.3kg
Length: 310mm with a 114mm barrel and stock folded (UNSUPPRESSED) Barrel length: 114mm, 137mm, 163mm or 201mm
Caliber: 9x19mm LUGER
Action: Closed bolt straight blowback
Feed system: 3D printed 25 round box magazine, 33 rounds with OEM Glock magazine.
Required Parts for the Partisan 9
Tools Required
- Digital calipers
- Vice
- Electric drill
- Dremel tool
- Metal file
- Needle file set
- Sandpaper
- 1.5mm, 2mm, 2.5mm, 3mm, 4mm and 5mm allen key
- 6mm socket, extension and driver
- Hacksaw with a good metal blade
- Flathead screw drivers, micro, small, medium
- Needle-nose pliers
- Side cutters or wire cutters
- Safety glasses
- Soldering iron
- E6013 welding electrodes
- Stick welding machine
- Welding helmet
- Slag hammer
- 2X – Welding grips
- Cutting fluid for drilling and tapping holes
- Ballistol universal oil
- JB weld metal epoxy
- Loctite thread locker
- Drill bits
- 1X – M4 or 8-36 Threading tap
- 1X – Threading tap handle compatible with m4 taps
- Cleaning kit
Suggested 3D Print Settings
Slicer Settings
Layer height – 0.16mm
Initial layer height – 0.24mm
Line width – 0.4mm
Wall line count – 3
Outer wall wipe distance – 0.4mm
Optimize wall printing order – YES
Compensate inner wall overlaps – YES
Fill gaps between walls – everywhere
Filter out tiny gaps – YES
Print thin walls – YES
Z seam alignment – user specified
Z seam position – back left
Seam corner preference – smart hiding
Top surface skin layers – 1
Top layers – 3
Bottom layers – 3
Top/bottom pattern – lines
Top/bottom line directions – [45,90,135,180] Skin overlap percentage – 30%
Skin overlap – 0.12mm
Infill density – 99% or 100%
Infill pattern – lines
Connect infill lines – YES
Infill line directions – [45,90,135,180]
Infill overlap percentage – 30%
Infill overlap – 0.12mm
Printing temperature – 225C
Build plate temp – 50C
Initial build plate temp – 55C
Flow – 100% (Adjust on the printer if necessary) Support flow – 95%
Print speed Walls – 30mm/s
Print speed top/bottom – 40mm Print speed infill – 40mm/s
Print speed Skin – 25mm/s
Print speed Initial – 20mm/s Print speed Supports – 60mm/s Travel speed – 150 to 200mm/s Enable print cooling Fan – YES Fan speed – 70 to 90%
MAX fan speed – 85 to 100% Initial fan speed – 0%
Support overhang angle – 70%
Support brim width – 3mm
Support Z distance – 0.16mm Support x/y distance – 0.7mm Support interface – DISABLED!!!
Fan speed override –YES
Support skin fan speed – 80 to 100% Nr of slower layers – 1
Enable Acceleration – YES
Print acceleration – 300mm/s
Travel acceleration – 1000mm/ s
Enable Jerk – YES(Set Print Jerk to 8) Enable retraction – YES
Retract at layer change – YES
Retraction amount – 5,5mm
Retraction speed – 45mm/s
Retraction extra Prime amount – 0.02mm3 Retraction MIN travel – 1.5mm
Z hop when retracted – DISABLE!!!
Filament
The partisan 9 like most other 3D printed guns preforms best when printed using PLA +. There are a variety of filaments available including Esun, Polymaker, and more.
