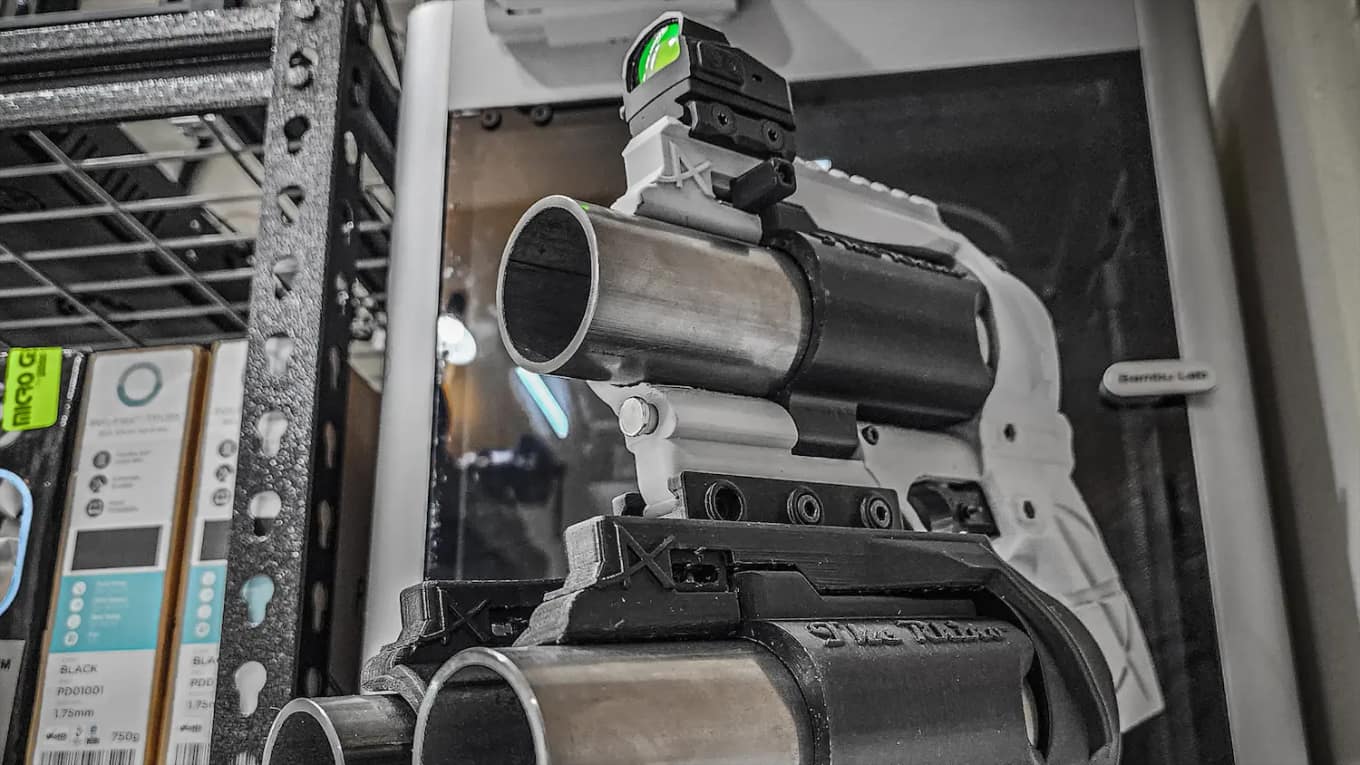

Anarchy 37mm Launcher

3d printed 37mm launcher anarchy

Anarchy 37mm Launcher STL Files

37mm Ordinance Launcher w/ Multiple Variations

Anarchy 37mm Launcher Details

Introducing The Anarchy, a small 37mm launcher that is highly efficient and affordable.

The Anarchy was developed with 3 versions, the Hand Cannon, the Under barrel and the Double Door Knocker.

Check out some of the other 3D Printed launchers

The design was originally created by Danny Meatball and was later developed by Atticus, who extended the frame and implemented the “flip to side” design.

The project was then handed over to the current owner, Unseenkiller, who oversaw its completion with the help of a few others at AWCY and in the 3D Gun community.

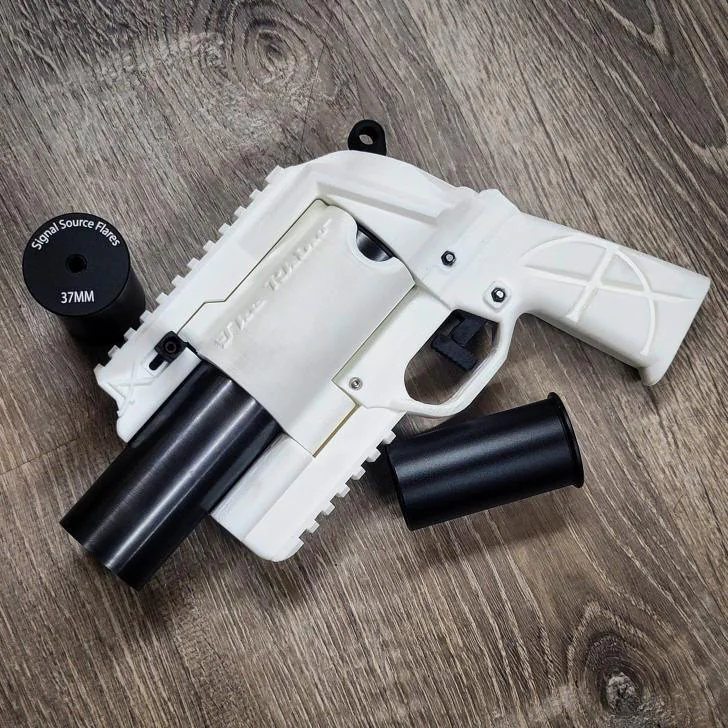

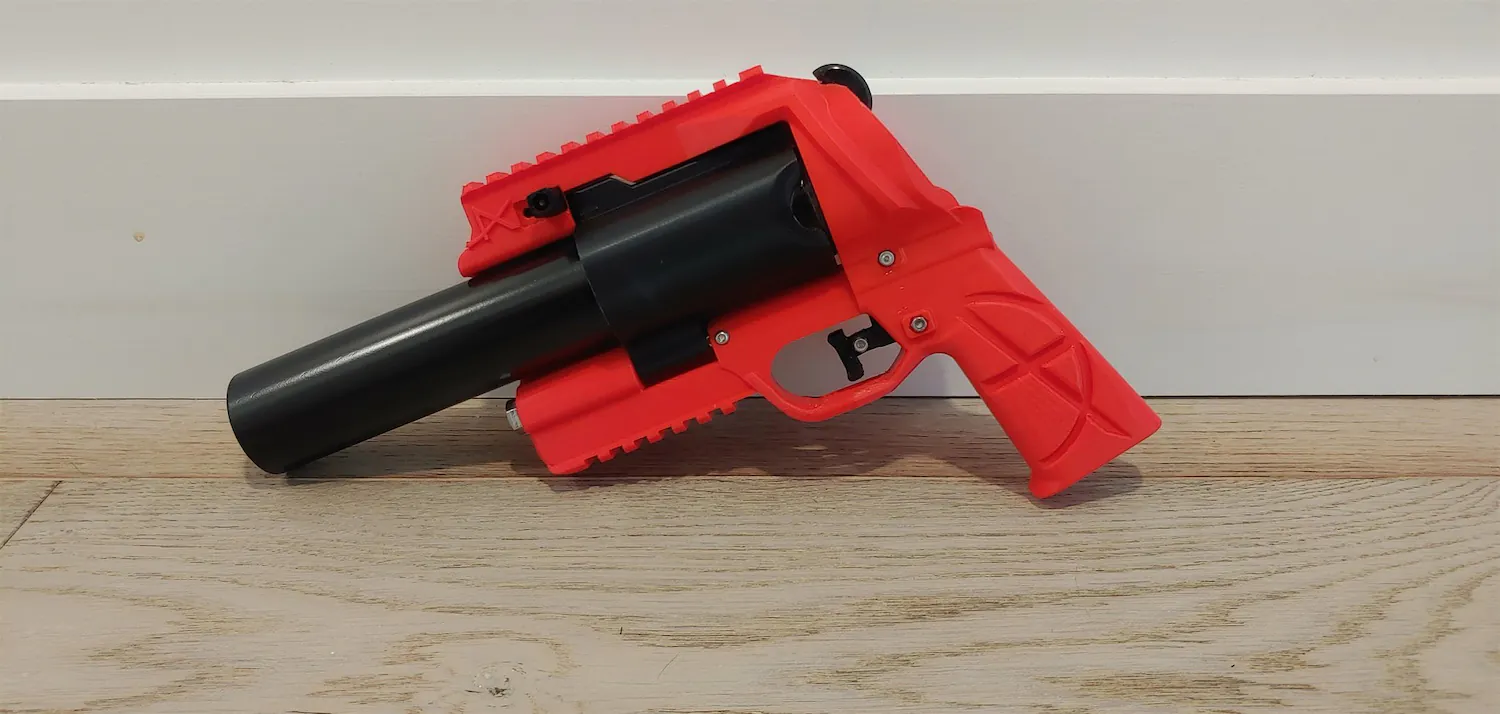

Anarchy 37mm Launcher in the Wild



Anarchy 37mm Launcher Tech Specs

The Anarchy 37mm launcher has been tested with over 280 rounds of 37mm projectiles and is recommended to use between 15gr and 35gr of Black Powder for maximum enjoyment and longevity.

It is important to note that safety should always be a top priority and hotter loads are not recommended.

Required Parts for the Anarchy 37mm Launcher


  • Filament
  • 3D Printer
  • 1x Ender Bed Spring
  • 2x if building Double Door Knocker
  • DevCon Epoxy (adhering barrel to sleeve)
  • 1x AR-15 Hammer Spring (Extra Power for MILC rounds)
    • 2x if building Double Door Knocker
  • 1x AR-15 Buffer Detent Spring
    • 2x if building Double Door Knocker
  • Optional: 1x/2x Seamless Barrel
  • Optional: 1x/2x Fence Post Barrel


  • 1x 5/16″x3.5″ Adjustable Clevis Pin: Part # 98330A190
    • 2x if building Double Door Knocker
  • 3x M3x25 SHCS (trigger, hammer butt plug)
    • 6x if building Double Door Knocker
  • 2x M3x16 SHCS (Firing Pin, Trigger Shoe)
    • 2x if building Double Door Knocker
  • 1x M3x20 SHCS (barrel sleeve)
    • 2x if building Double Door Knocker
  • 1x M3x35 SHCS (barrel release carriage)
    • 2x if building Double Door Knocker
  • 6x M3 Nuts
    • 12x if building Double Door Knocker
  • Rhino Barrel (Part # 7767T52) – Cut down to 6” or desired length
    • 2x if building Double Door Knocker


  • Hammer
  • Drill
  • Power Drill
  • Punch Set Armorer

Suggested 3D Printed The Anarchy Settings

Nozzle0.4 mm
Layer Height0.2 mm
Wall Count8 min
TemperatureHighest Possible
Infill Density100%
SupportsOn / Everywhere
Support TypeTree
Cooling Fan25%
Bed AdhesionChosen
Note: Print very slowly for the best layer adhesion


Any of the below filament types will work for 3D printing the Anarchy launcher:

  • PLA+
  • PLA Pro

Looking to strap a launcher under your AR15? Need to clear rooms with a thump? Maybe you are just trying to relive the COD glory days with your very own noob tube.

The Anarchy 37mm launcher is the 3D gun for you!
