The Glock 19 is one of the most famous handguns in history. The FMDA dd19.2 brings the G19 style frame to 3D printers everywhere.
If you want to 3D print a Glock-style handgun the dd19.2 is a great place to start.
The dd19.2 is overall styled after the Glock although it utilizes the Polymer 80’s pistol grip for improved ergonomics.
FMDA dd19.2 3D Printed Glock Frame Details
The G19 style dd19.2 is one of the most downloaded 3D printed guns on the internet.
Husky Armory’s 3D Printed Glock 19 (FMDA DD19.2) kit includes everything you need to complet your 3D printed Glock frame.
Includes:
- Glock 19 ‘Iditarod’ Slide Kit
- Lower Parts Kit
- Standard Glock 19 Sights
- Aves DD19.2 Rail Kit
- Aves Glock 19 Locking Block
That’s understandable, given that this Glock model is quite popular, strong, and easy to use at the same time.
The 3D-printable frame allows builders to create their pistol at home by purchasing a rail kit and following simple instructions that can be found online.
The most important part is that the STL files for 3D printing are available and free to download here.
What is FMDA dd19.2 3D Printed Glock Frame?
The FMDA dd19 took the internet by storm as one of the best 3D handguns for reliability and ease of DIY production.
As usual, 3D gun builder Ivan the Troll, came out with the dd19.2 which increased the durability, available styles, and as always top-notch documentation.

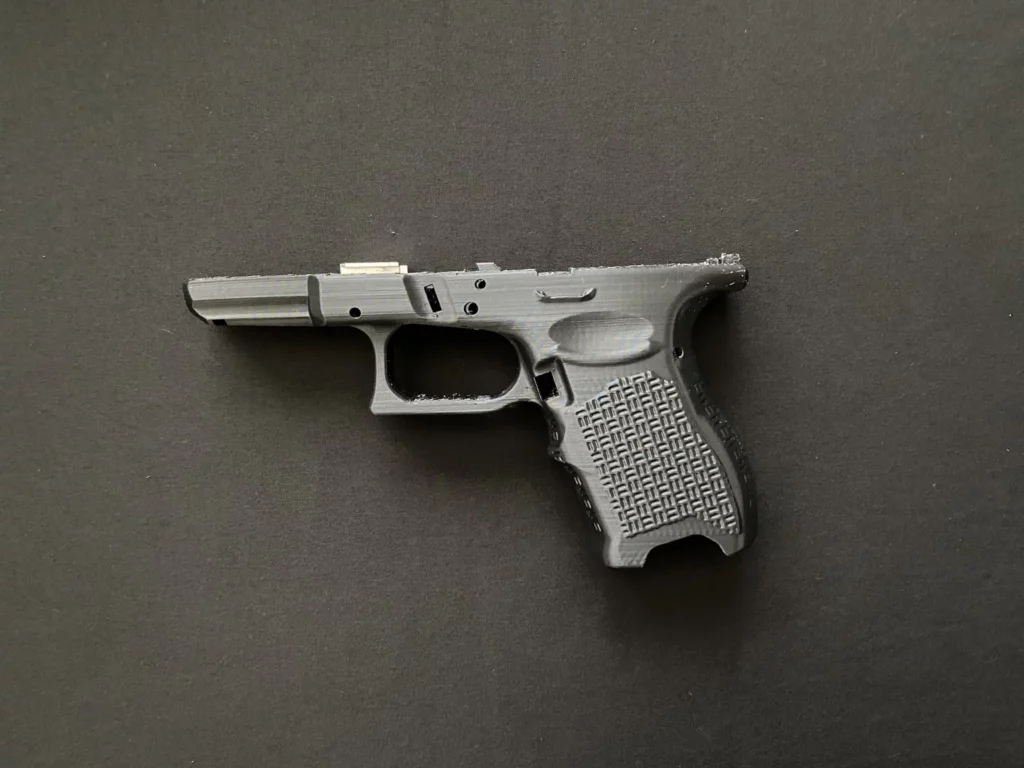

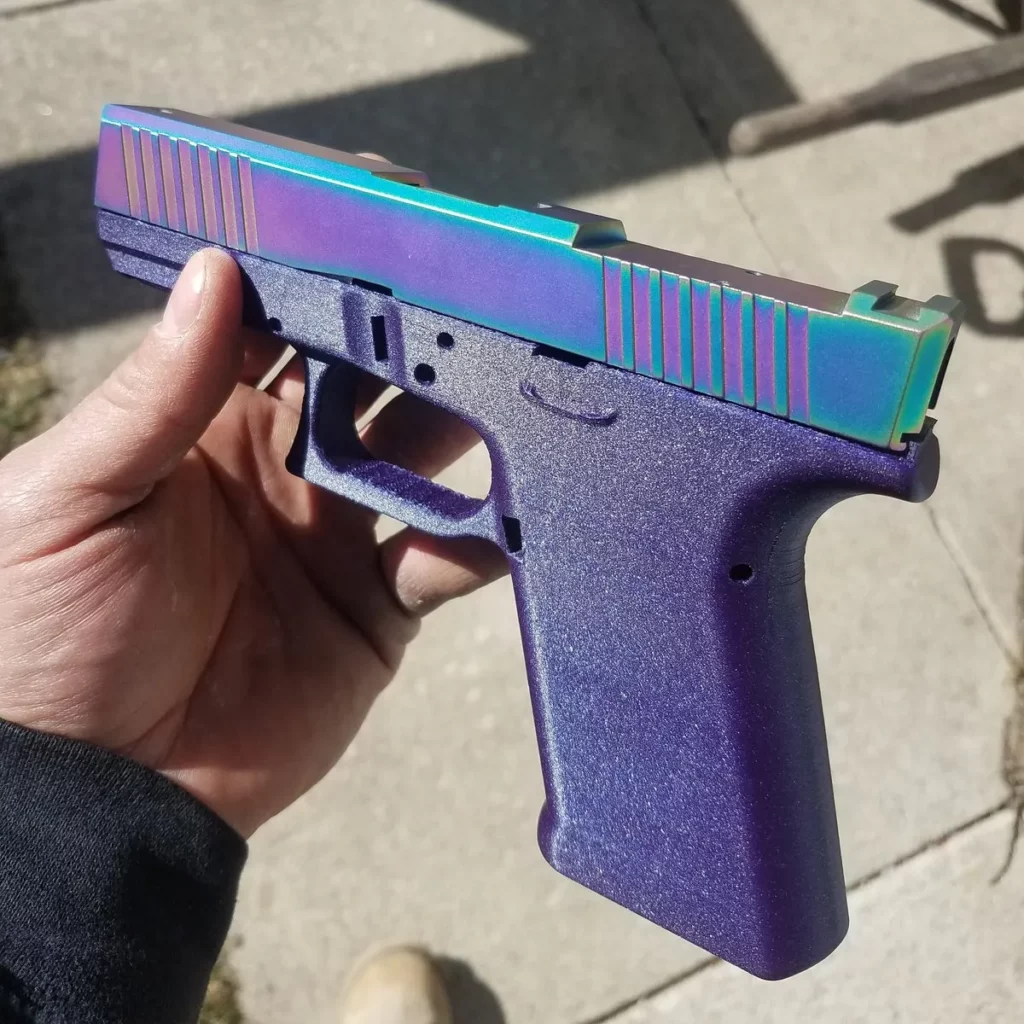

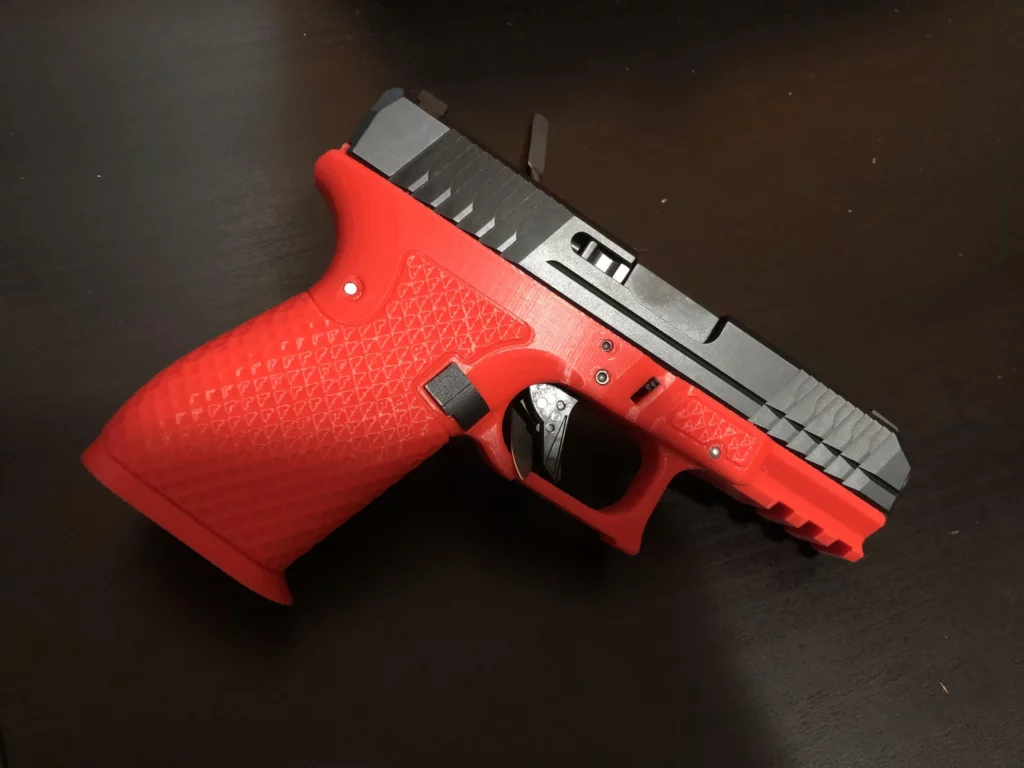

FMDA dd19.2 in the Wild
Photos
Video
FMDA dd19.2 3D Printed Glock Frame History
This 3D-printable frame was designed by Ivan The Troll.
Even if you haven’t heard of Ivan The Troll before, which is most unlikely, you have probably run into his amazing works, such as the projects UBar2 (AR15 Lower), Colt 3011, Amigo Grande, FMDA dd26.2, and FMDA dd17.2.
So, this popular DIY gun designer started to work on a new version of the frame around two years ago. The dd19.2 frame is considered an improved, updated version of the original FMDA “dd19” Glock frame(check out the DD20 too).
Ivan The Troll spent a lot of time on tests and adaptation. He considered the feedback from the community on the first-generation frames and the biggest problems that needed to be fixed.
His mission was to design a version of the Glock 19 that was much more robust than v1.
The STL file for 3D printing the dd19.2 was uploaded online in January 2021, along with a full step-by-step guide on how to assemble the parts.
The guide also contains various recommendations on where to find the necessary parts, tools needed, and videos.
FMDA dd19.2 3D Printed Glock Frame Tech Specs
For starters, it’s very important to note that this 3D-printable frame is compatible with the standard compact Glock 19 along with the Glock 22 upper.
The tech specs of the dd19.2 are a blend of the classic compact Glock 19 and the newer P80 compact grip design.
3D FMDA dd19.2 Print Settings
The following suggested print settings are recommended based on using PLA+ filament by the gun developer Ivan the Troll.
Nozzle: 0.4mm
Layer Height: 0.15mm
Temp: 230/60C
Infill: 100% (You can use 99% infill on Cura to speed up the print time)
Supports: On/full (tree supports are ok) – use a close support interface gap. Your interface gap should not be larger than 0.15mm unless you know what you are doing with your setup.
Cooling fan: 20% normal, 50% on bridges. Off for the first 10 layers. Keep the fan low to prevent warp.
Bed Adhesion: gluestick or hairspray or both
Post-processing: If you print your frame upright, you can clean up the rough bottom-facing areas of your print with a soldering iron – after removing supports, take your soldering iron and melt the rough patches on the frame together to make them smooth.
All other settings can/should be left as default or whatever you know works best with your printing setup.
Required Parts for the FMDA dd19.2 3D Printed Glock Frame
The required parts for the FMDA dd19.2 are much the same as building any compact or 19 Glock variation
The required parts for the dd19.2 build are:
It’s important to note that you may not find the entire kit. However, you can make your own kit by purchasing various parts from different places or our store.
The Glock Upper Parts Kit you’ll need contains the following:
- Glock slide
- barrel
- recoil spring assembly
- firing pin
- spring
- striker assembly
- channel liner
- extractor
- rear plate, trigger housing
- slide stop
- slide latch
- slide lock spring
- magazine catch
- magazine catch spring
- locking block
FMDA dd19.2 Rail Kit
Even though there are builders who want to build their own dd19.2 rails, the process may be very time-consuming. Many vendors offer rail kits that include all necessary rails and parts.
You should keep in mind that the rails should be marked “FMDA ddXX.2 compatible” (the XX will be the Glock model you want to build).
FMDA dd19.2 Required Tools
- 3 millimeters and 4 millimeters drill bits
- Drill
- Screwdrivers
- Punch
- Hammer
- Needle-nosed pliers (optional)
Conclusion
So, that’s it! We hope that you liked our review of the FMDA dd19.2 3D Printed Glock Frame, especially because these days, info is hard to find.
If you’re interested in building your own Glock, this 3D-printed frame can be very helpful. Plus, the entire build process is fun, challenging, and ultimately rewarding once you hit the gun range.
As you saw, you won’t need many tools, and the frame is well-designed, so it doesn’t require professional skills. Moreover, you’ll find straightforward instructions in the ZIP file you’ll download for this frame.
Finally, don’t forget to leave a comment down below because we would love to hear your opinion on the FMDA dd19.2 compact 3D Printed Glock.
DISCLAIMER: This article and/or product is not manufactured, authorized, endorsed, or warranted by GLOCK. “GLOCK” is a federally registered trademark of GLOCK, Inc. and is one of many trademarks owned by GLOCK, Inc. and GLOCK Ges.m.b.H. Neither 3D Gun Builder nor this site is affiliated in any manner with, or otherwise endorsed by, GLOCK, Inc.
