DS9 AR-Style Pistol

3d printed ds9 ar pistol

DS9 AR-Style Pistol STL Files

3D Printed 9mm Compact AR-Style Pistol Platform

DS9 AR-Style Pistol Details

The DS9 or Discrete Spacegun 9 is a 9mm Compact AR-Style pistol platform that is ready to be printed with accessible parts and PLA+ filament.

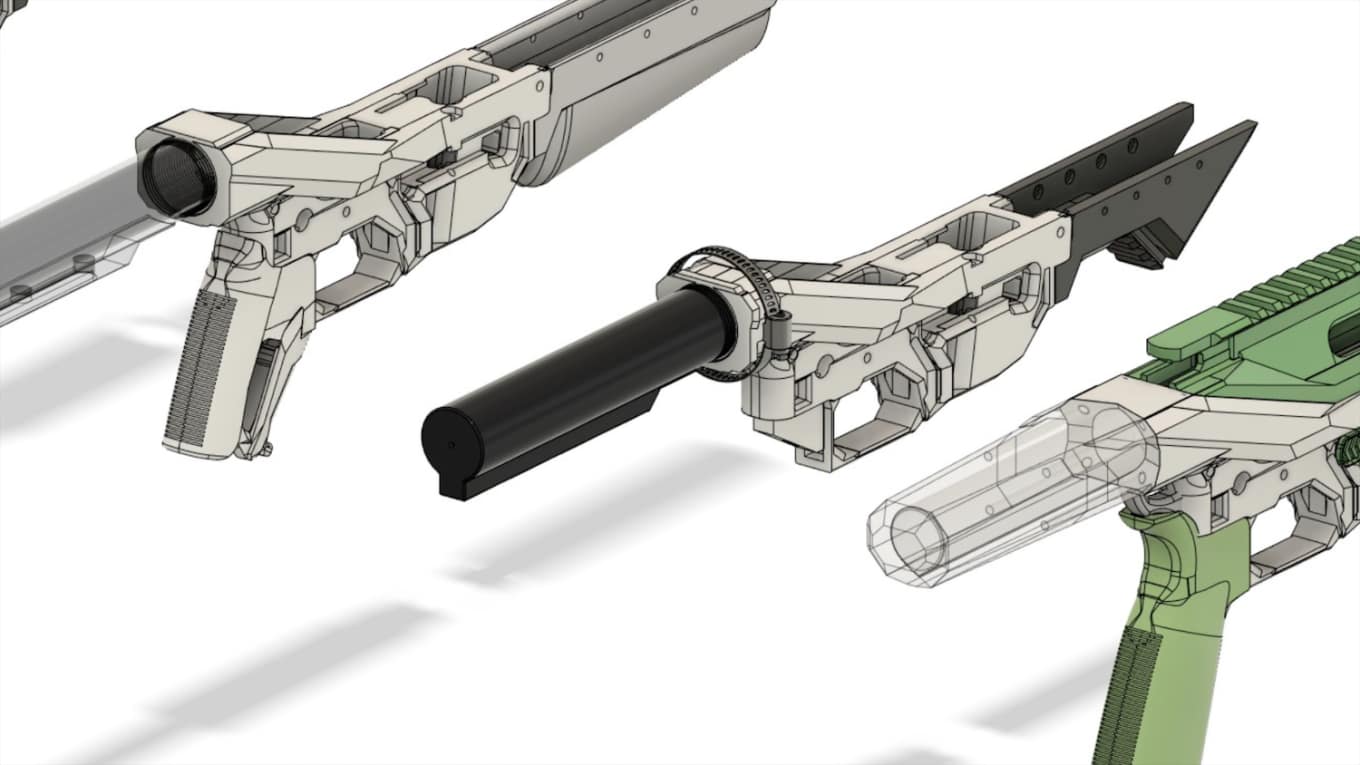

The geometry for the DS9 AR Pistol was borrowed and combined from the Firebolt, FGC-9, Biden’s Bane, and ARK 3D gun designs.

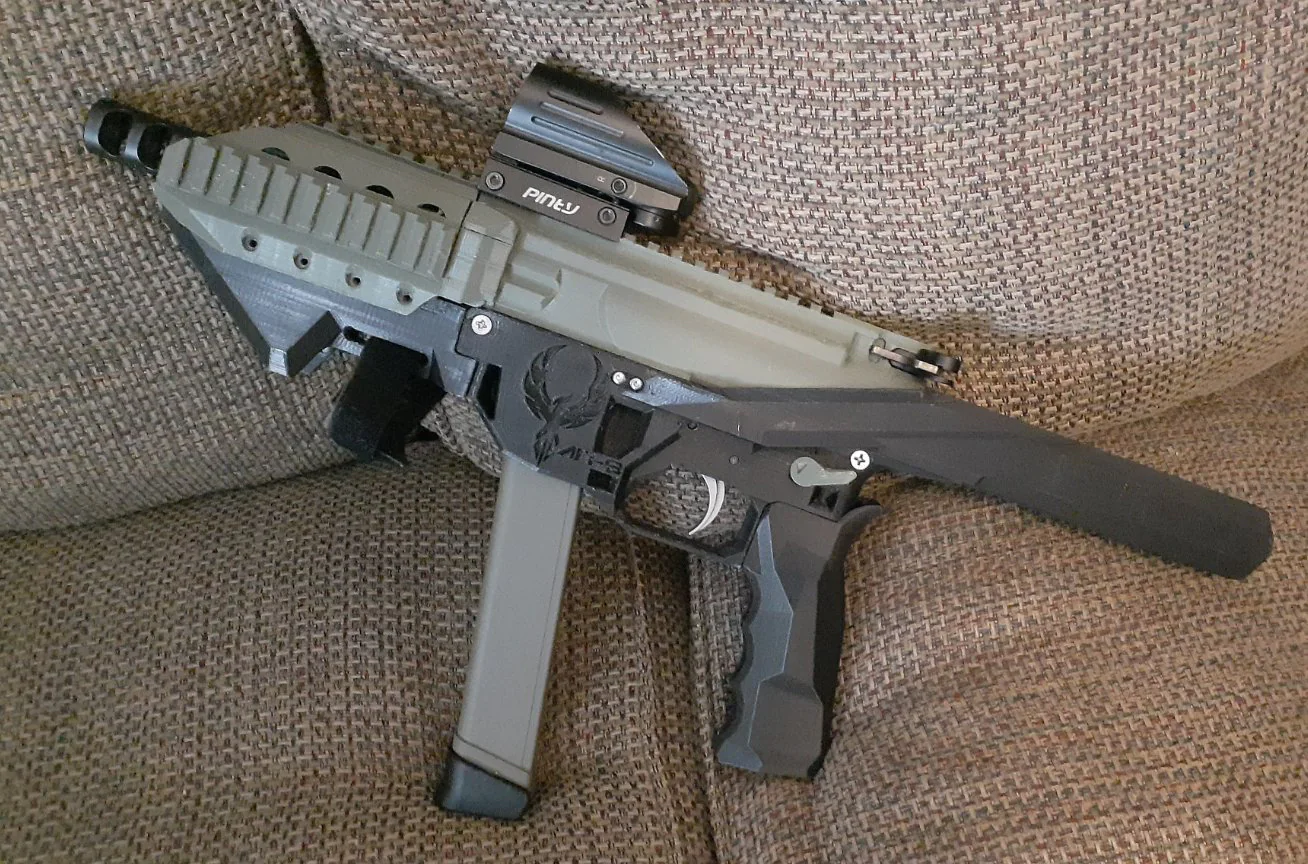

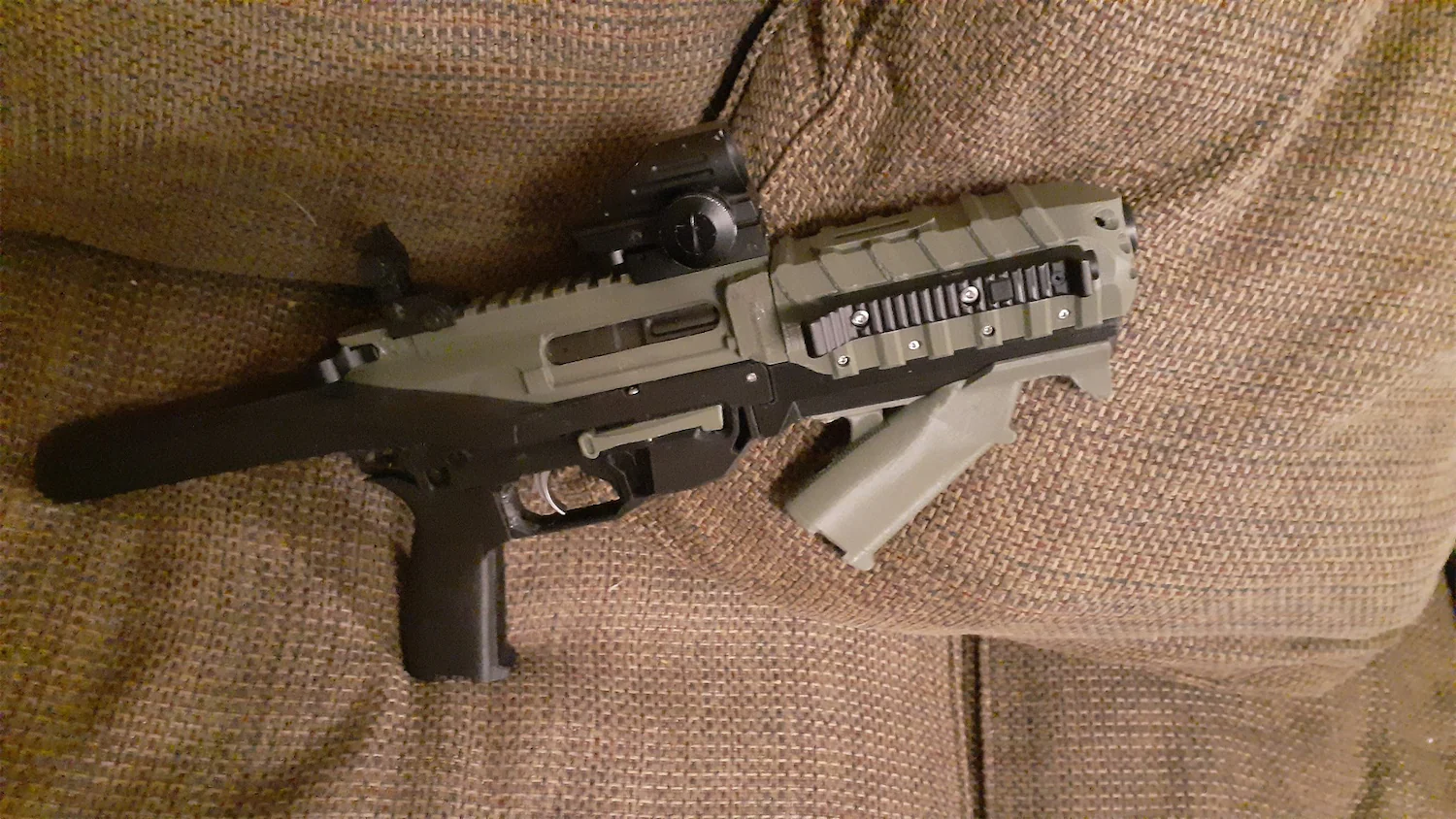

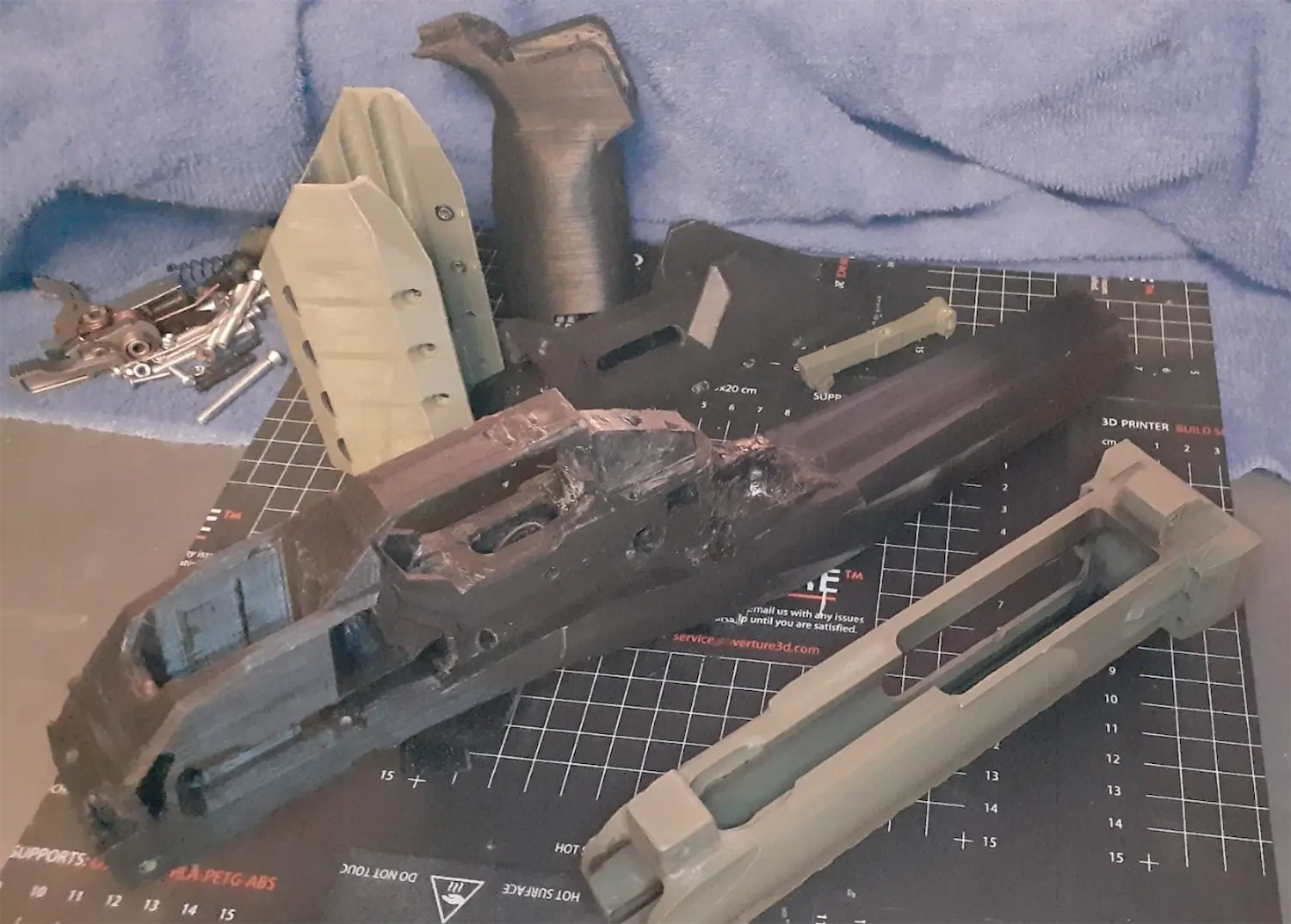

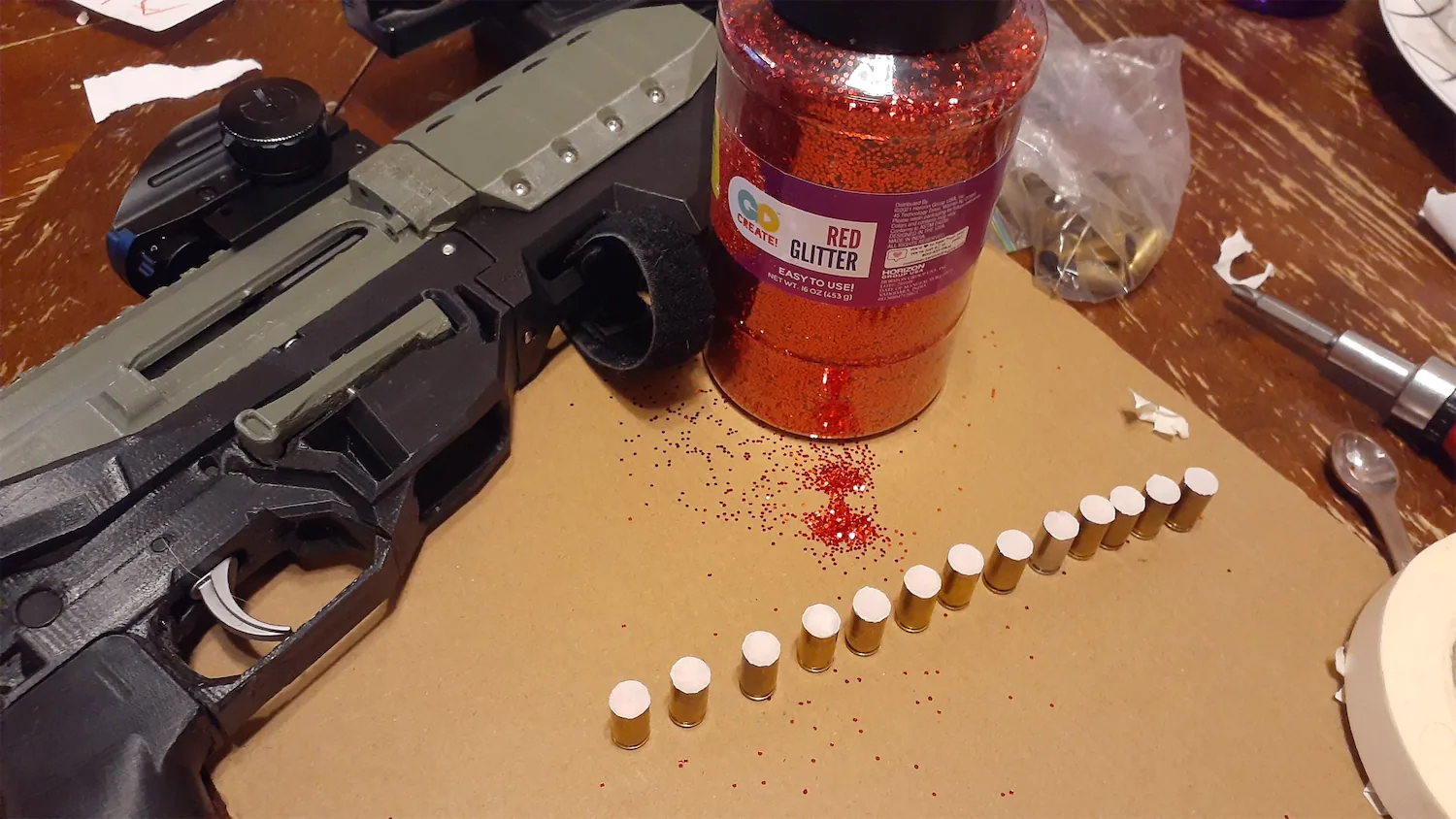

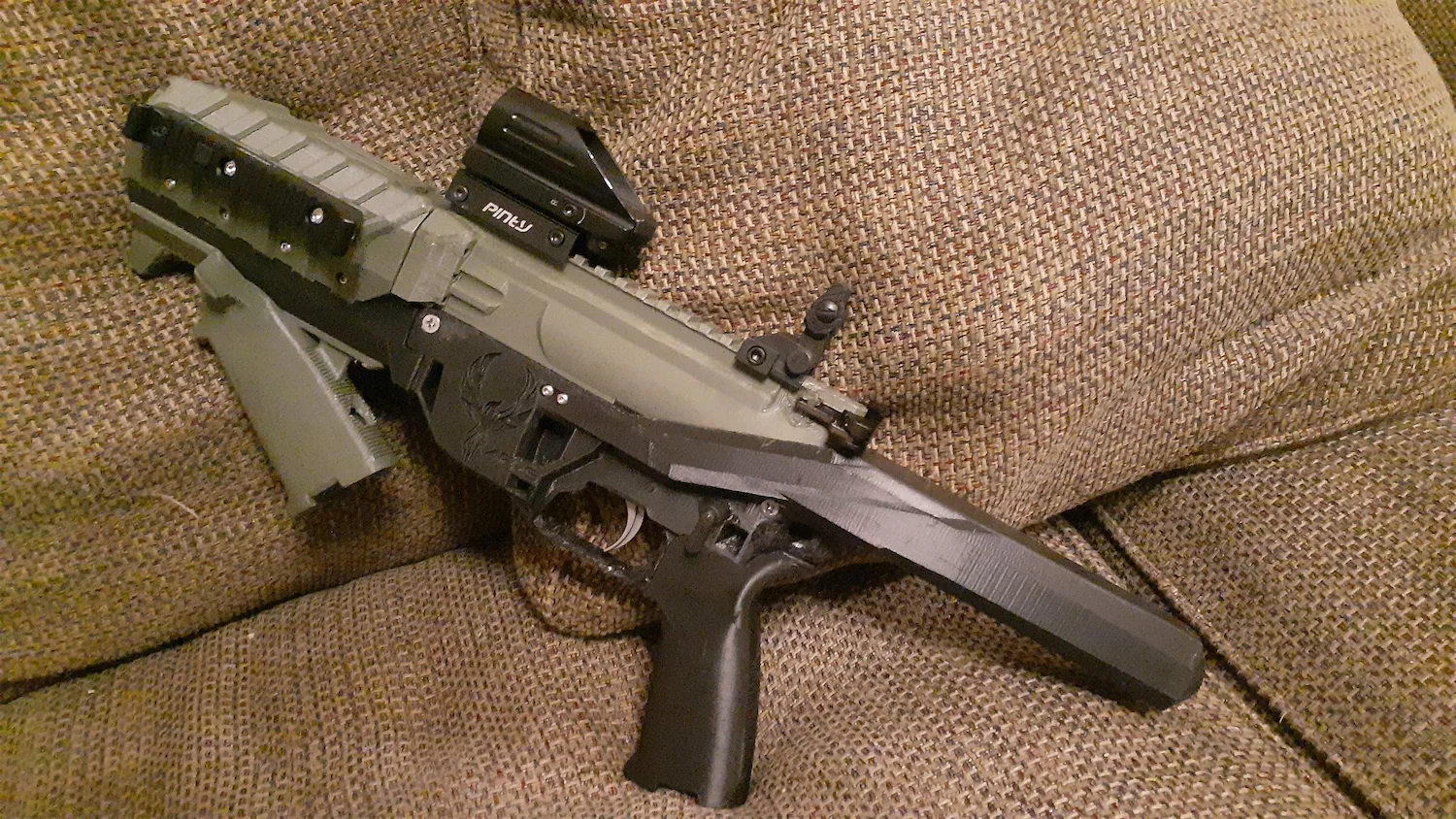

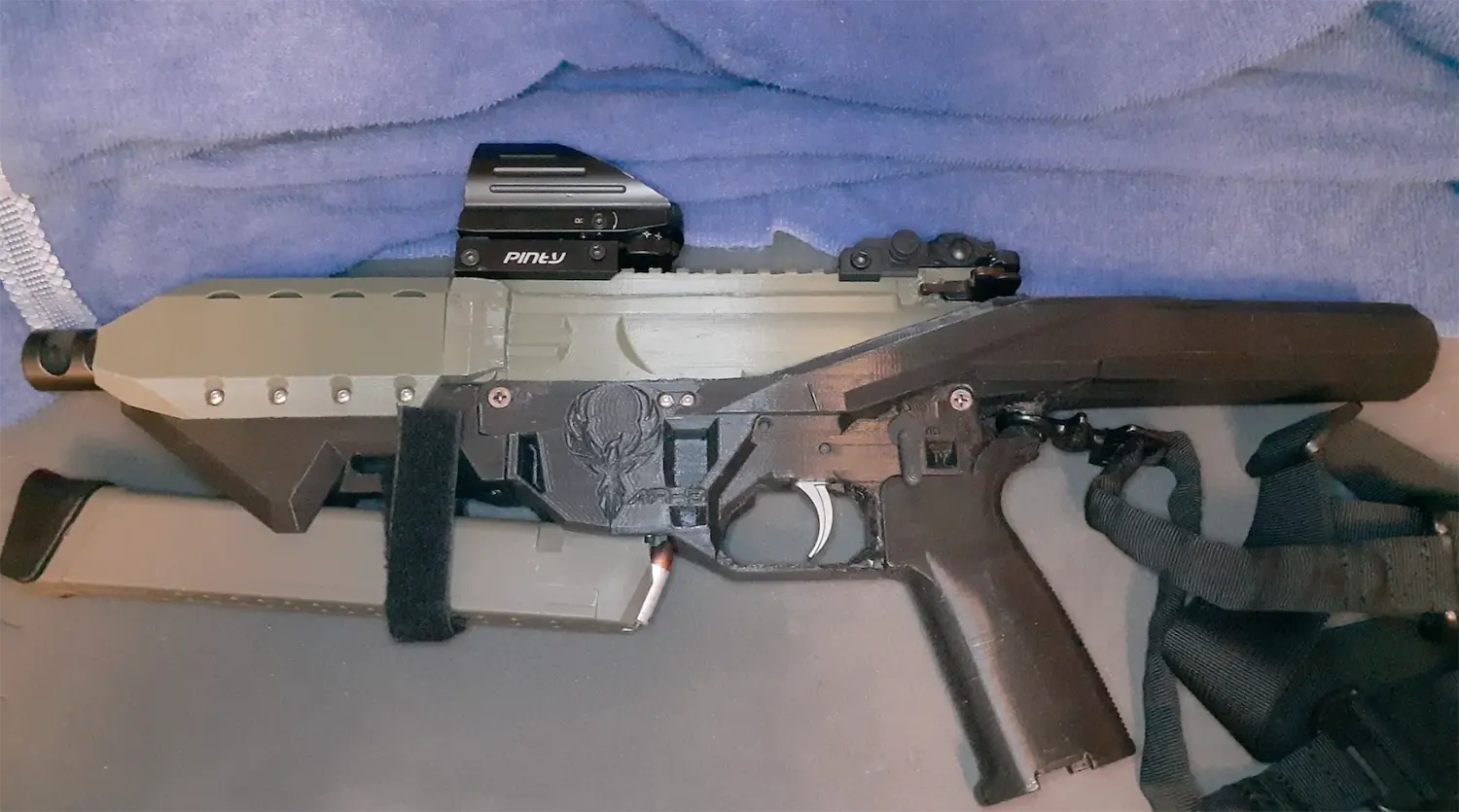

DS9 AR-Style Pistol in the Wild


DS9 AR-Style Pistol Tech Specs

The 3D printed DS9 AR Pistol is a type of firearm that combines power, accuracy, and versatility in a compact and lightweight package. It features a 9-inch barrel, a free-floating handguard, and is chambered in 9mm.

Beta testing for the DS9 was assisted by 3D gun testers Nikolai Romanov, Tedyhere, and P80 Ralph.

Required Parts for the DS9 AR-Style Pistol


  • Filament
  • 3D Printer
  • 9mm AR-15 bolt
  • AR-15 charging handle -9mm AR-15 barrel
  • AR-15 buffer
  • AR-15 buffer spring
  • AR-15 trigger
  • AR-15 magazine catch spring


7 – 8×32, 1 5/8 in (To attach barrel retainer to upper, also front take down)

1 – 8×32 7⁄8 in (Rear take down)

2 – Hex Socket Button Head Cap Screws Bolts

6 – 12mm (To connect top and bottom barrel shroud.)

1 – 8mm (To secure bottom of barrel shroud to lower.)

2 – 20mm (To attach ejector.)

1 – 12mm (Grind down the button head’s sides to make a grub screw and secure the buffer into the buffer tube.)


  • Hammer
  • Drill
  • Power Drill
  • Punch Set Armorer

Suggested 3D Printed DS9 AR Settings

Nozzle0.4 mm
Layer Height0.15 mm
Wall Count8
Infill Density99% – 100%
SupportsOn / Everywhere
Support TypeTree
Cooling Fan25%
Bed AdhesionChosen
Note: Print very slowly for the best layer adhesion


Any of the below filament types will work for 3D printing the DS9 AR-Style Pistol:

  • PLA+

The 3D Printed DS9 AR-Style Pistol is a remarkable firearm that combines precision engineering, durability, and user-friendliness.

If you’re a 3D gun enthusiast looking for a top-of-the-line firearm that offers exceptional accuracy, reliability, and customization options, be sure to check out the 3D Printed DS9 AR-Style Pistol.
