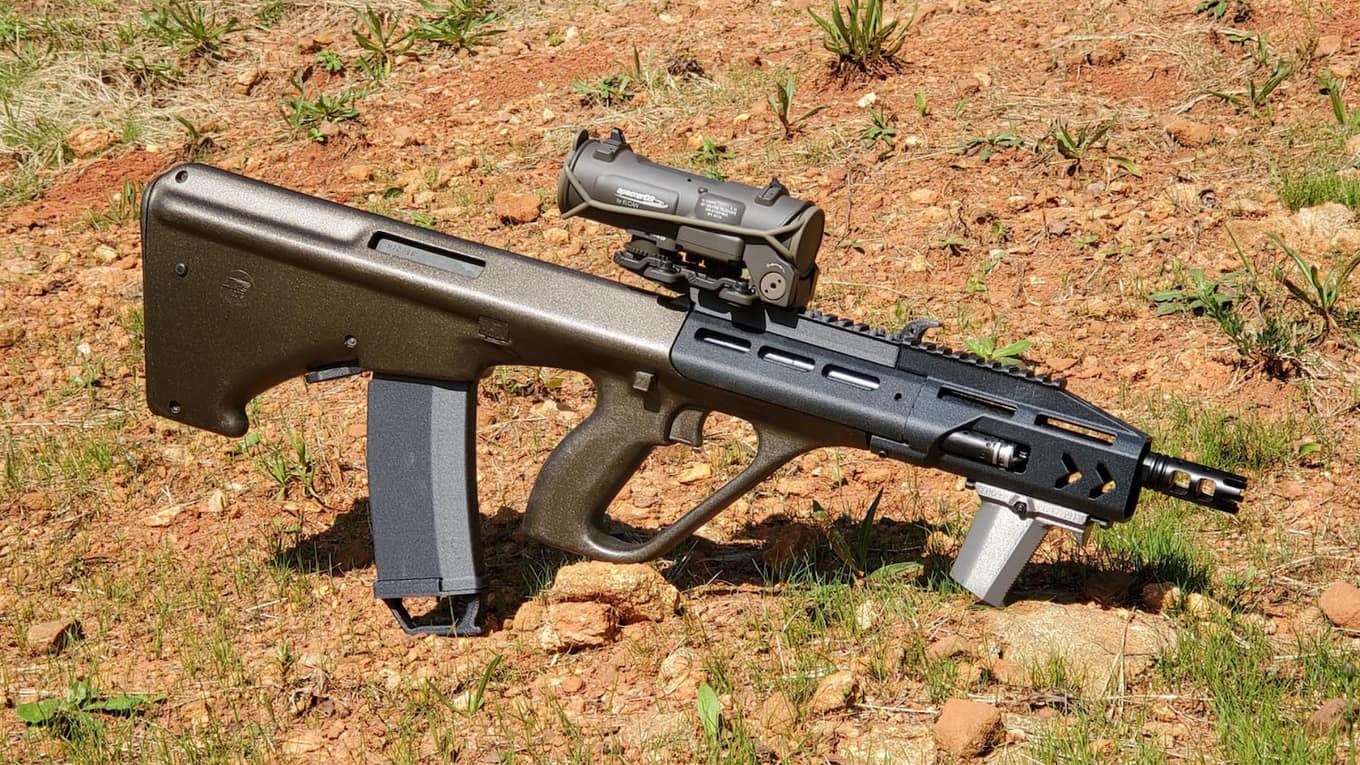

NylAug Details
So you’re interested in the Nylaug, a 3D printed AUG? Well, you’re in the right place!
You might be familiar with the iconic Steyr AUG. A semi-automatic bullpup rifle is known for its futuristic design and unique versatility.
The Nylaug is an innovative hybrid of both polymer and metal. It results from hard work and passion for advancing 3D printed firearms engineering.
This groundbreaking hybrid material 3D design is a modern take on the iconic AUG.
The 3D printed Nylaug is easy to print with minimal supports. The NylAug developers used advanced 3D printing materials such as heat-resistant nylon filament.
The design features sleek, modern lines, making your space rifle pop at the range.

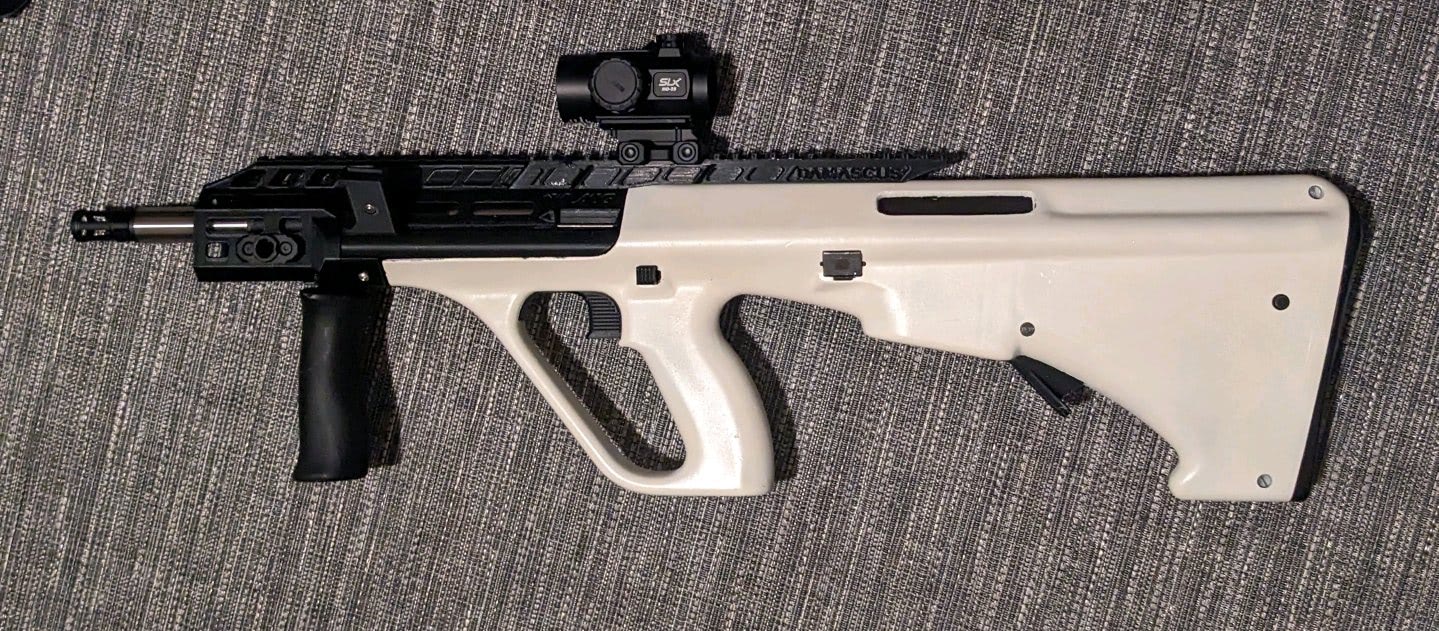

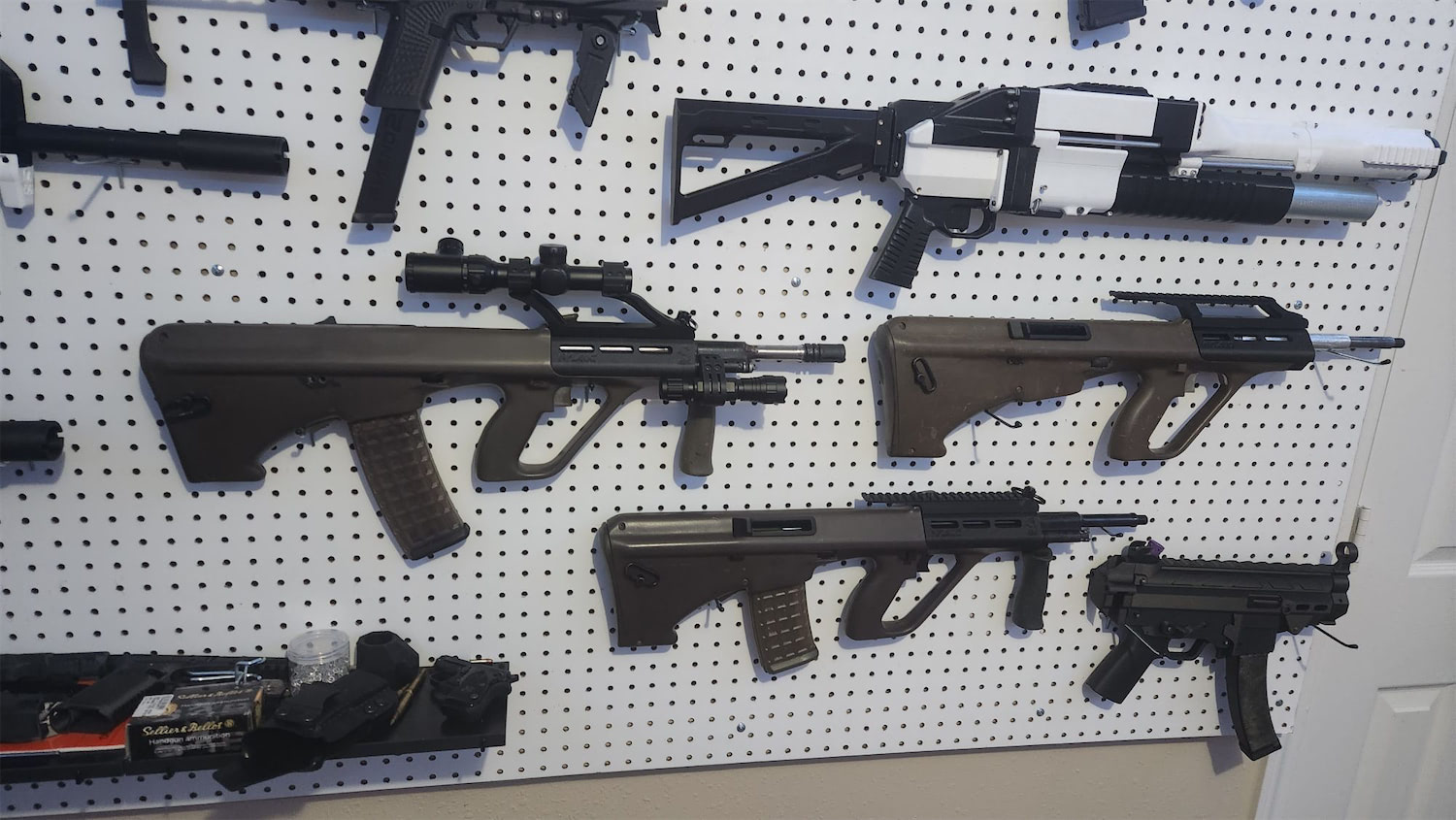

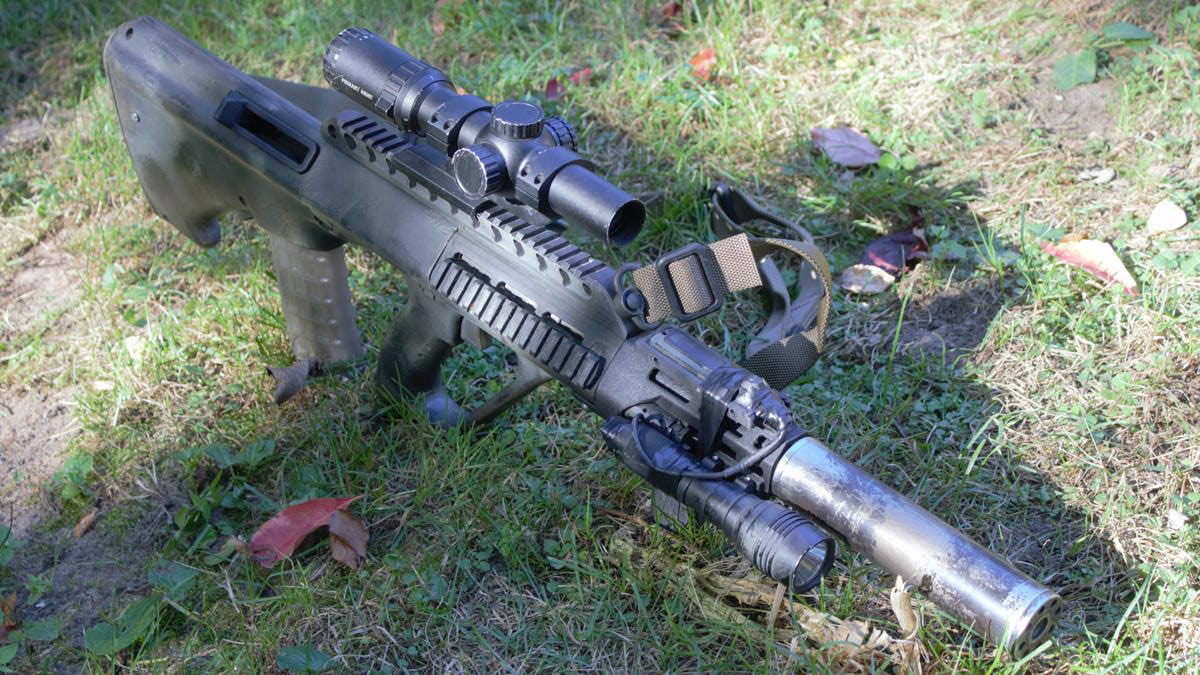

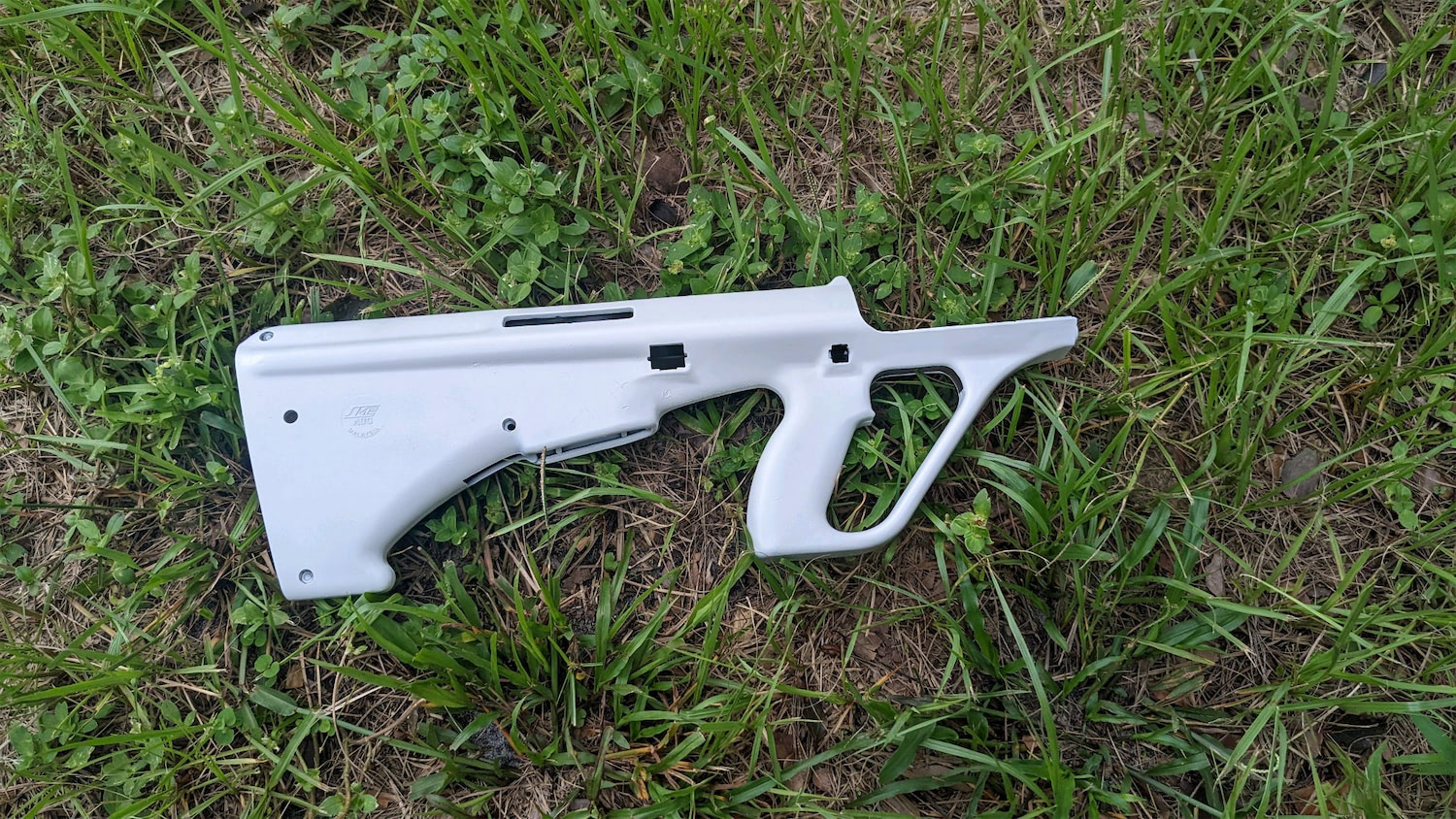

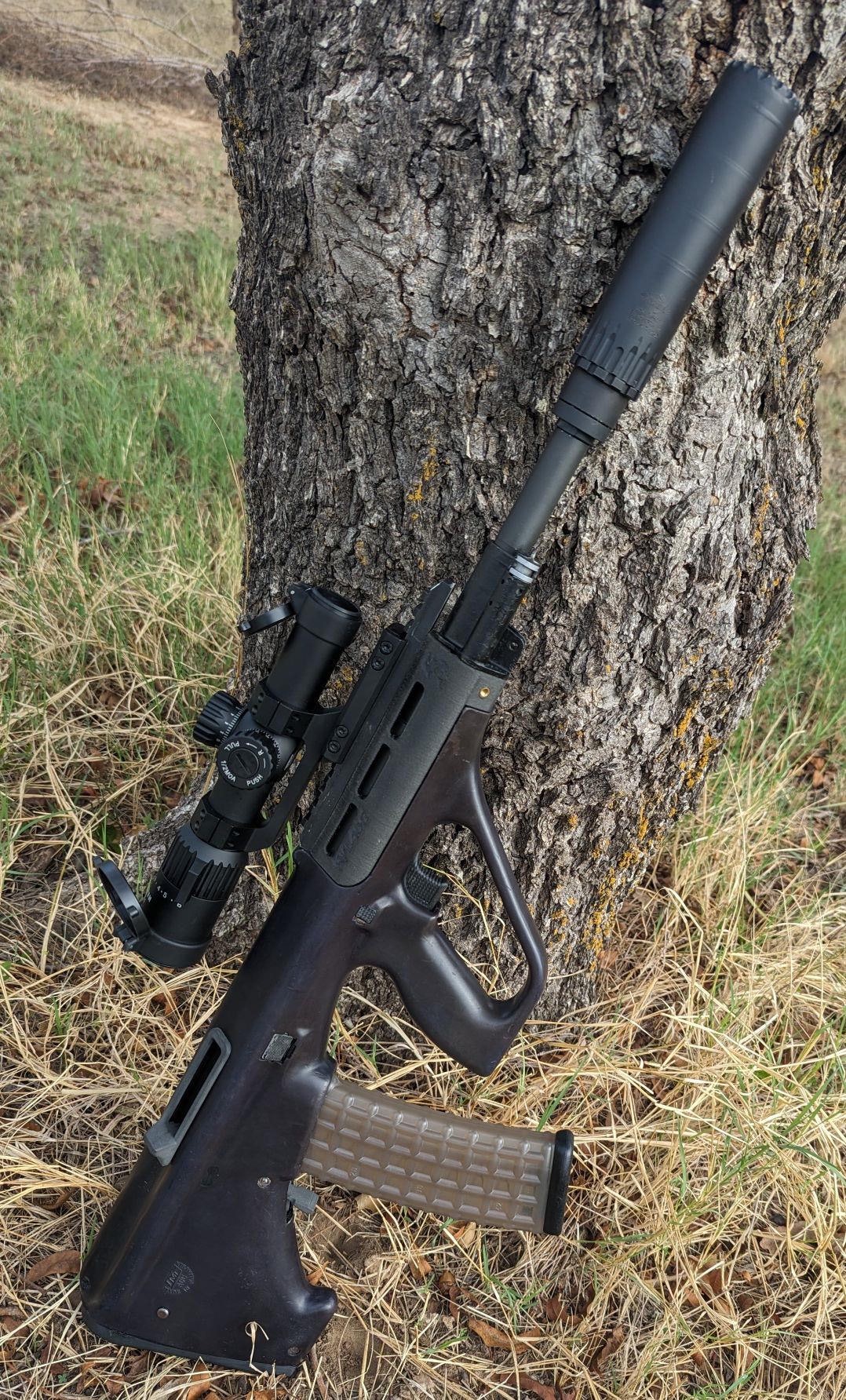

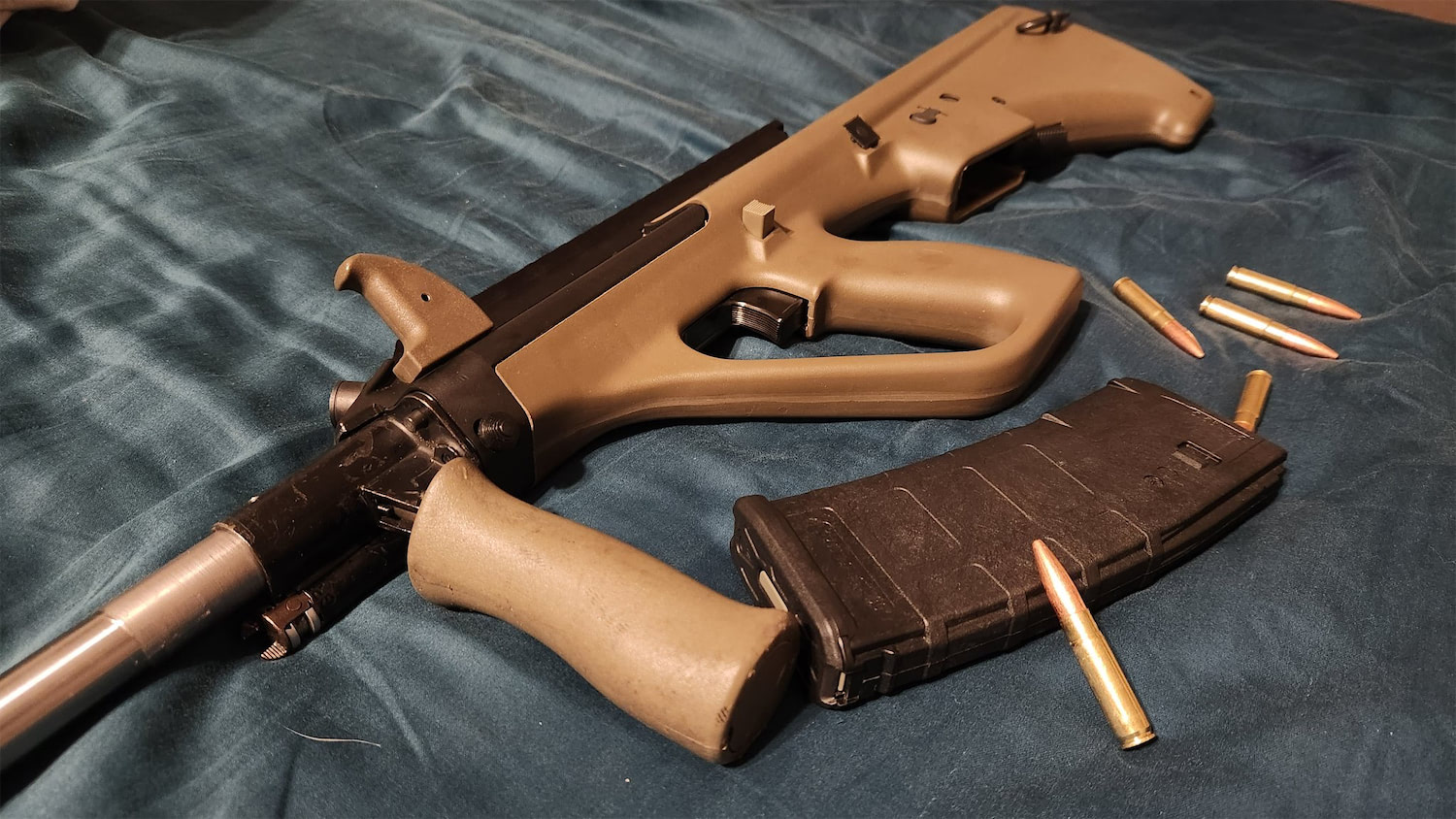

NylAug in the Wild
Photos
Videos
The Nylaug has finally been released! Find the files on the odysee page below. You can also find various Nylaug swag on the print2a gear website.https://t.co/hevU4pbcdHhttps://t.co/8c8vriKbBp pic.twitter.com/cmDQT2kORR
— Print2a (@Boog_Bakery) October 1, 2023
If you were wondering if the NylAUg was hype or hoopla… pic.twitter.com/wNguJzm743
— zer0fux (@the_zer0fux) June 30, 2022
3D Printed Aug Tech Specs
The Nylaug is dependable and chambered in the standard 5.56 rifle cartridge.
The NylAug file pack has various printed accessories, including an extended magazine release, shell deflector, hand guards, and a durable 3D printed mag.
This 3D firearm design was engineered over a year and has been heavily tested by several members over the 1000-round mark.
It should be noted that builders should be thorough when reviewing the documentation of the NylAug. Accidentally ending up with an NFA-controlled full-auto firearm is easy to do here.
To stay compliant the developers of the NylAug Bullpup included exhaustive and detailed build guides.
Required Parts for the NylAug
Prerequisites
- Filament
- 3D Printer
- Aug Bullpup Parts Kit
- Aug / Modified AR15 Barrel
Hardware
| 2.5mm drill bit | 2 (always have an extra bit handy) | 5058N56 | Method A rear stock denial for threaded portions |
| 3mm drill bit | 2 | 5058N57 | Method A and B rear stock denial |
| #51 drill bit | 2 | 2901A226 | Method A and B rear stock denial pilot hole, any tiny drill bit will do |
| 3/8“ drill bit | 2 | 2901A133 | Method A and B rear stock denial countersinking holes; any large bit will do |
| 1/2″ piece 3/16 key stock | 1-3 | 98870A120 | Method A and C rear stock denial, for front stock denial |
| 3” piece of 3/16 key stock | 1-2 | 98870A192 | Method A and C rear stock denial, for front stock denial |
| M3 tap | 1 | 8305A12 | method A rear stock denial |
| 8mm M3 flathead machine screw | 4 | 91294A128 | Method A and B rear stock denial |
| 16mm M3 flathead machine screw | 2 | 91294A134 | Handguard and top rail |
| 300mm M3 thread rod | 3-5 | 90024A218 | Receiver assembly |
| M3 jam nuts | 20 | 91828A211 | Receiver assembly, handguard, top rail |
| M3 nylock nuts (alternative to jam nuts) | 20 | 90576A102 | Receiver assembly, handguard, top rail |
| M3 washers | 12 | 98689A112 | Receiver assembly |
| M3 Heat Inserts | 2 | 94459A434 | Receiver assembly |
| M4 heat inserts | 3 | 94459A150 | Top rail |
| 16mm M4 socket head screws | 3 | 91290A154 | Top rail |
| M4 nuts | 1 | 90592A090 | Top rail |
| M4 washer | 4 | 98269A430 | Top rail |
| 1/2″ steel tubing | 10.7″ length | 9220K361 | Op rod bushing |
| 1/2″ reamer | 1 | 2995A74 | Optional op rod bushing reamer. Or use drill bit |
| JB Weld Original | 1 | 7605A4 | Stock denials |
Tools
- Vise
- Drill
- Dremel
- Hammer
- Punches
- Hacksaw
- File
- Sandpaper
- Soldering iron
NylAug Build Instructions
Filament
- Coex Nylex CF/GF
- Matterhackers NylonX
- Sainsmart ePA-CF
- eSun PLA+
The NylAug is not the most straightforward build and requires light metal fabrication work.
If you want to test your skills in 3D gun building the NylAug is the perfect project to test your chops!
