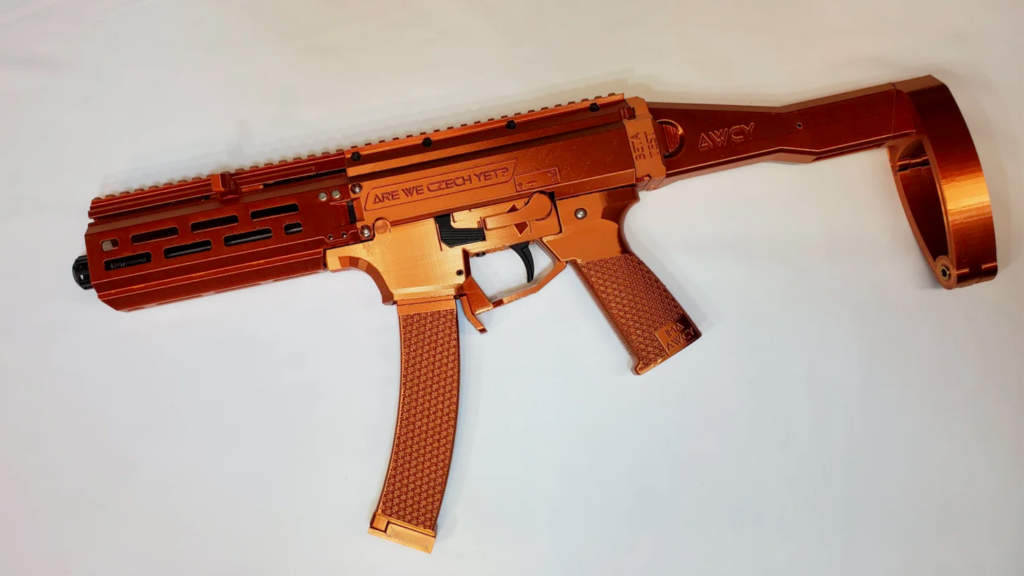

All Your Bolts Are Belong To Us
Art is not meant to be contained, and no release exemplifies this mantra better than the legendary Scz0rpion. So popular that it became responsible for an international parts shortage CZ has not (and probably will never) recovered from, few others have managed to match the impact this design has had on the GunCAD history books (if anyone ever gets around to writing them, anyway.)
Brought to us by a team of crack AWCY? devs and tested to hell and back, this design is sure to top any builder’s bucketlist.

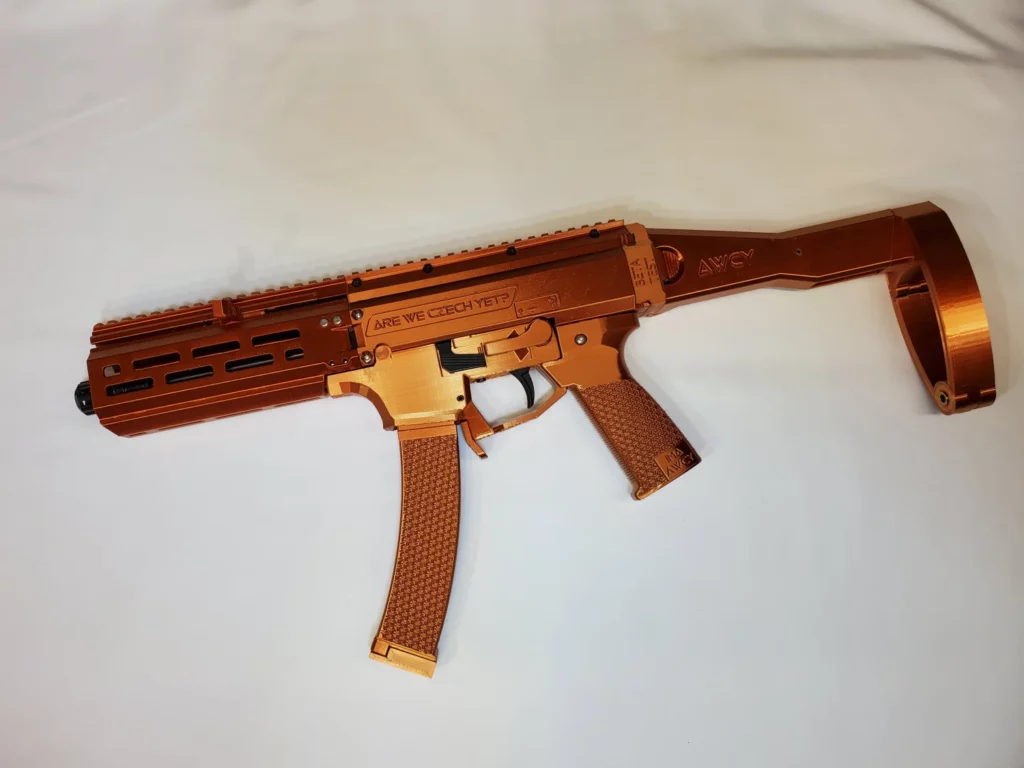

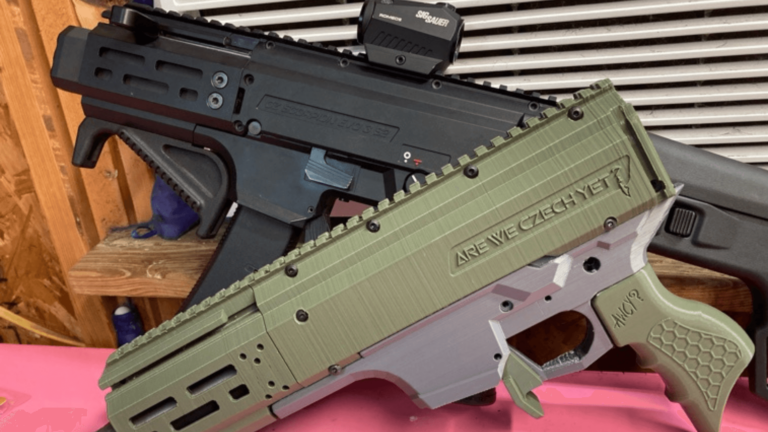

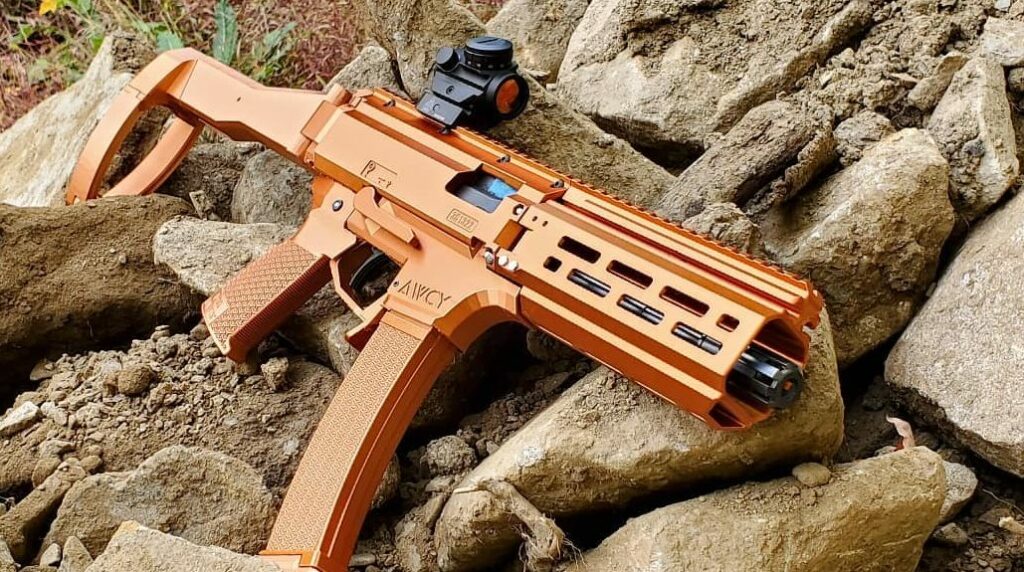

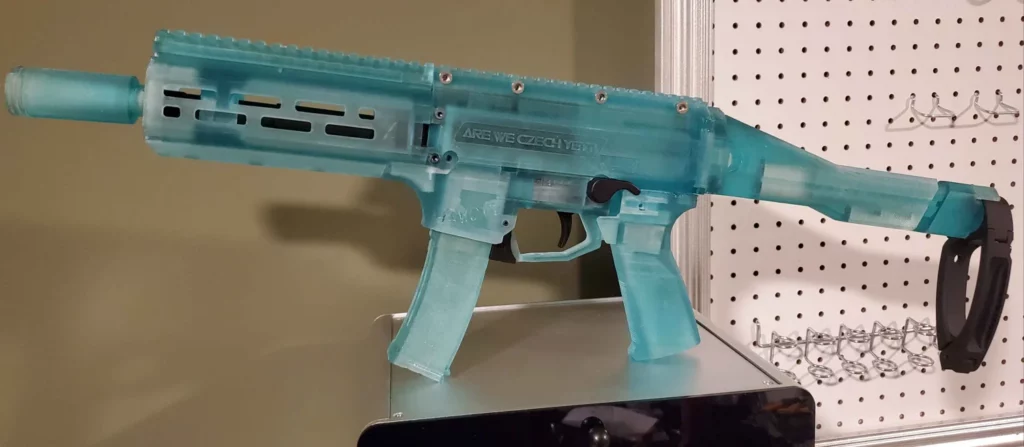

In The Wild
Technical Specs
The files are designed to accommodate PLA+ as a minimum, and the documentation makes specific recommendations for print settings. Durability may vary depending on selected printing materials and settings.
The documentation, hilariously, is in the form of a comic, following Sammy Scz0rpion through the assembly process, with several jokes thrown in for good measure. The design is meant to support standard Scorpion Evo parts.
Parts List
Components
- Scorpion Evo 3 Barrel + barrel nut
- Scorpion Evo 3 drop-in trigger pack
- Scorpion Evo complete slide assembly
- Scorpion Evo ejector assembly
- Scorpion Evo safety plug
- Scorpion Evo bolt release (optional)
Hardware
- 1 – M4 x 10mm socket head bolt
- 1 – M3 x 10mm Allen grub screw
- 1 – Compression spring (10mm L, 2.39mm OD, 1.58mm ID)
- 1 – Compression spring (.5″ L, .148″ OD, .106″ ID)
- 1 – Compression spring (.75″ L, .188″ OD, .13″ ID)
- 1 – 4mm x 20-30mm coiled spring pin
- 2 – 3mm x 8mm Allen grub screw
- 2 – M4 x 40mm screw
- 1 – M4 x 30mm screw
- 4 – M4 x 16mm screw
- 1 – M4 x 25mm screw
- 7 – M4 x .7 hex nut
Build Instructions
With legendary origins and timeless styling, the Scz0rpion is a must-have release for builders of all skill levels. Download and build one today!
