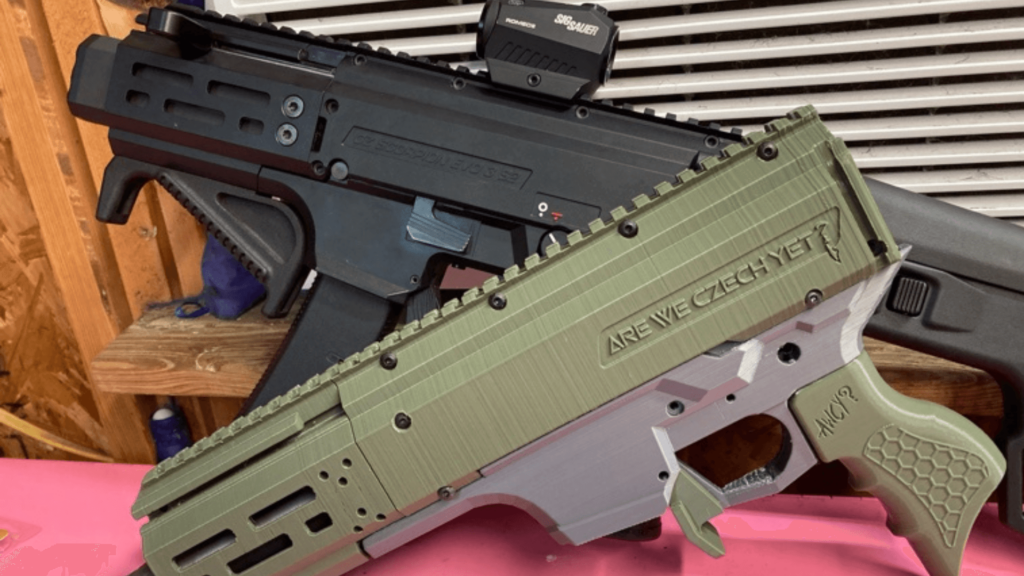

3d scarpion 22

ScARpion 22 STL Files

AWCYs Scarpion with AR Internals Chambered in 22LR

AR FGC All The Things

Thank goodness it’s only insanity if you expect a different result, because AR fire control groups work no matter what you put them in. If you looked at an Evo 3 recently and said, “Man, I really wish this was an AR,” you’ve come to the right place. The ScARpion 22 is a melding of AWCY?’s legendary Scz0rpion release with AR internals, creating a .22LR platform that’s the best of both worlds.

Released by cursd, with assistance from some of the biggest names in GunCAD, this wonderful love-child has plenty to offer builders who enjoy their guns with a side of interoperability.

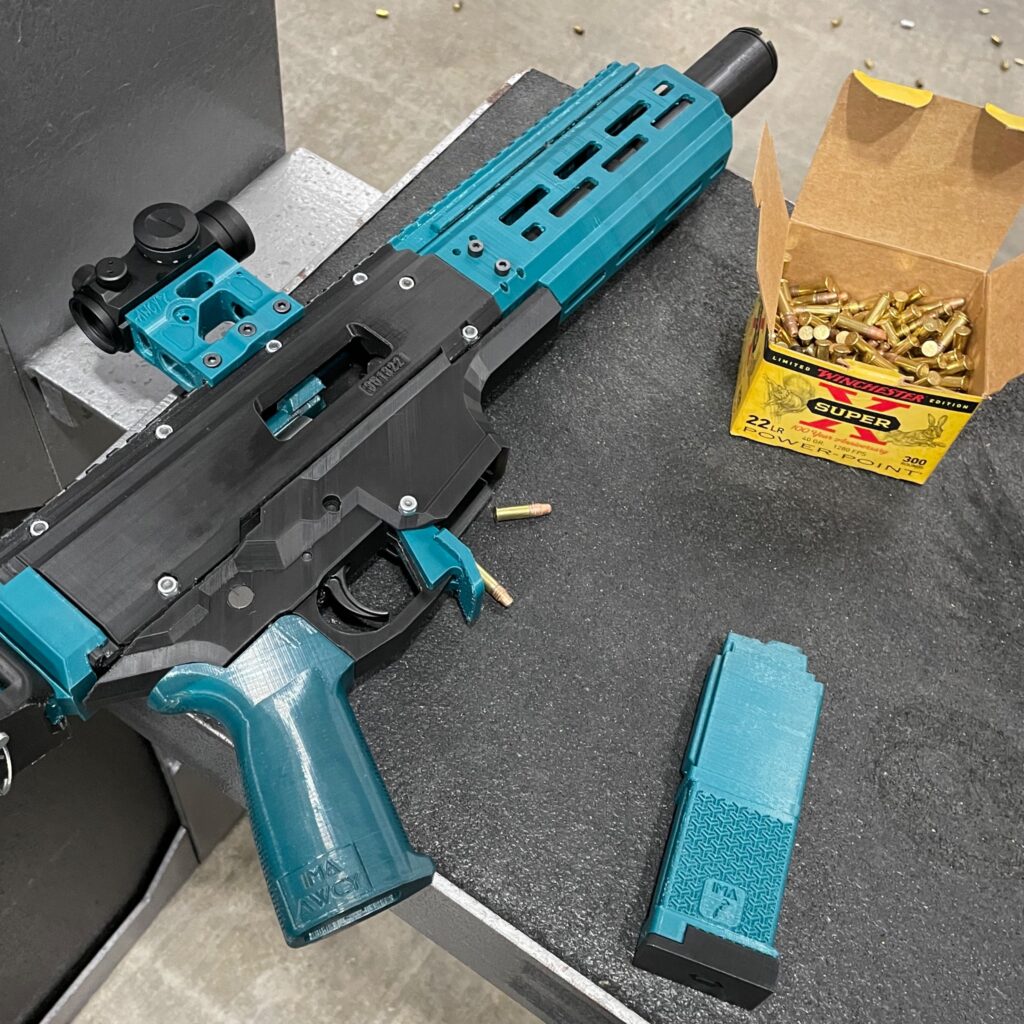

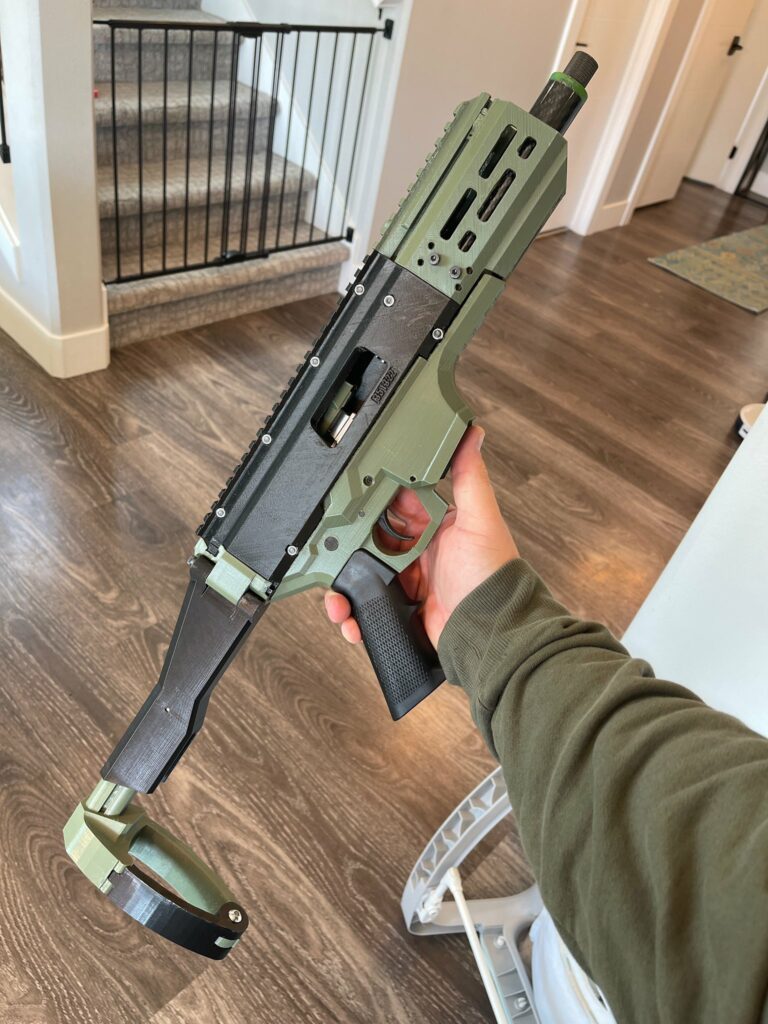

In The Wild

Photos

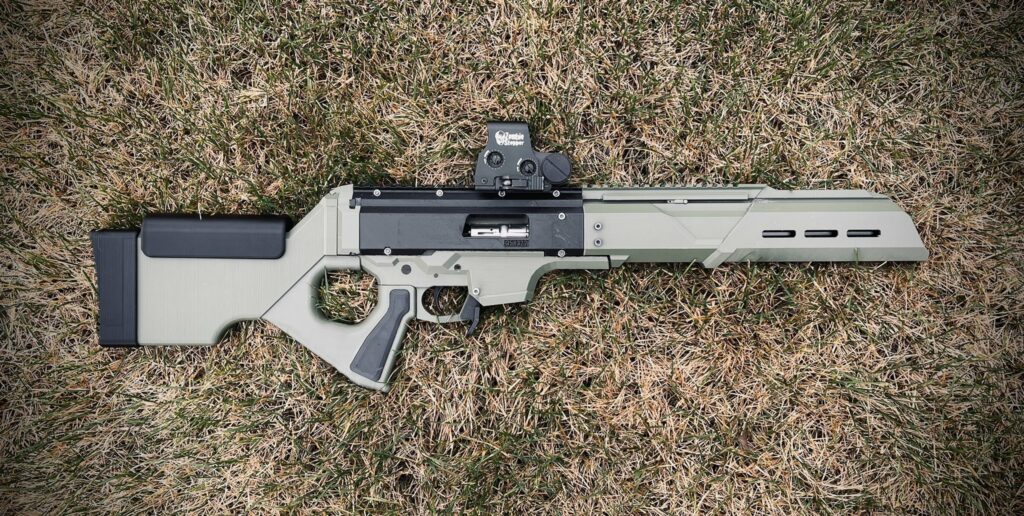

FFtRTFIUUAIcEJq

Videos

ScARpion Technical Specs

The files are designed to accommodate PLA+ as a minimum, and documentation recommends specific print settings for best results. Durability may vary depending on selected print settings and printing materials.

Documentation outlines the compatibility of parts with this release, and care should be taken by any prospective builder in verifying interoperability. Additional information can be found in the documentation of the Scz0rpion release.

ScARpion Parts List

Components

  • AR Barrel (builder’s choice, see documentation)
  • AR Bolt (builder’s choice, see documentation)
  • AR-15 mil-spec FGC

Hardware

  • 4 – M4x10mm bolt
  • 4 – M4x16mm bolt
  • 1 – M4x25mm bolt
  • 3 – M4x35mm bolt
  • 10 – M4 nut
  • 1 – Compression Spring (0.5″ L, 0.148″ OD, 0.106″ ID)
  • 2 – ¼-28 x ⅞” screw
  • 1 – Compression Spring (0.75″ L, 0.188″ OD, 0.13″ ID)

Tools

  • Punch set
  • Armorer’s hammer
  • Allen/hex key set

ScARpion Build Instructions

The ScARpion brings the best of both ARs and Evo 3s together to make for an awesome project. Download and build one today!
