It’s Not a Knock-Off, it’s a Localization

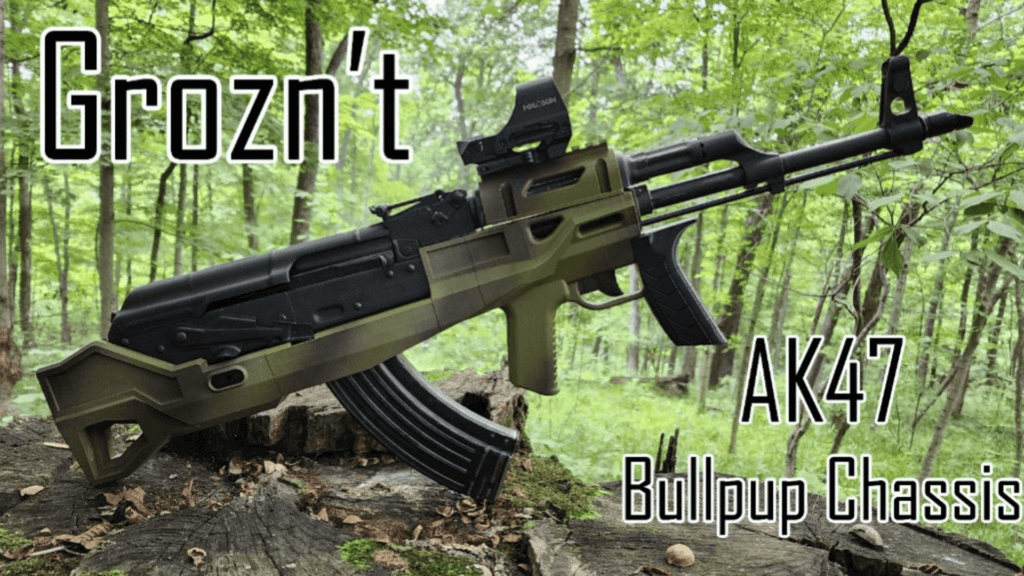

I don’t care what anyone says, bullpups are f*****g awesome, and it’s high time the AK crowd joined in on the fun. The Grozn’t is a printable chassis that converts AK and AKM pattern rifles and pistols as well as Yugoslavian/Zastava pattern rifles into bullpups without needing to modify the existing lower, providing both an aesthetic and functional upgrade to your firearm.
Brought to us by Dinka Roubles, a respected dev known primarily for their accessories work, this release is a no-brainer for the AK owner looking to maximize the utility of their platform.

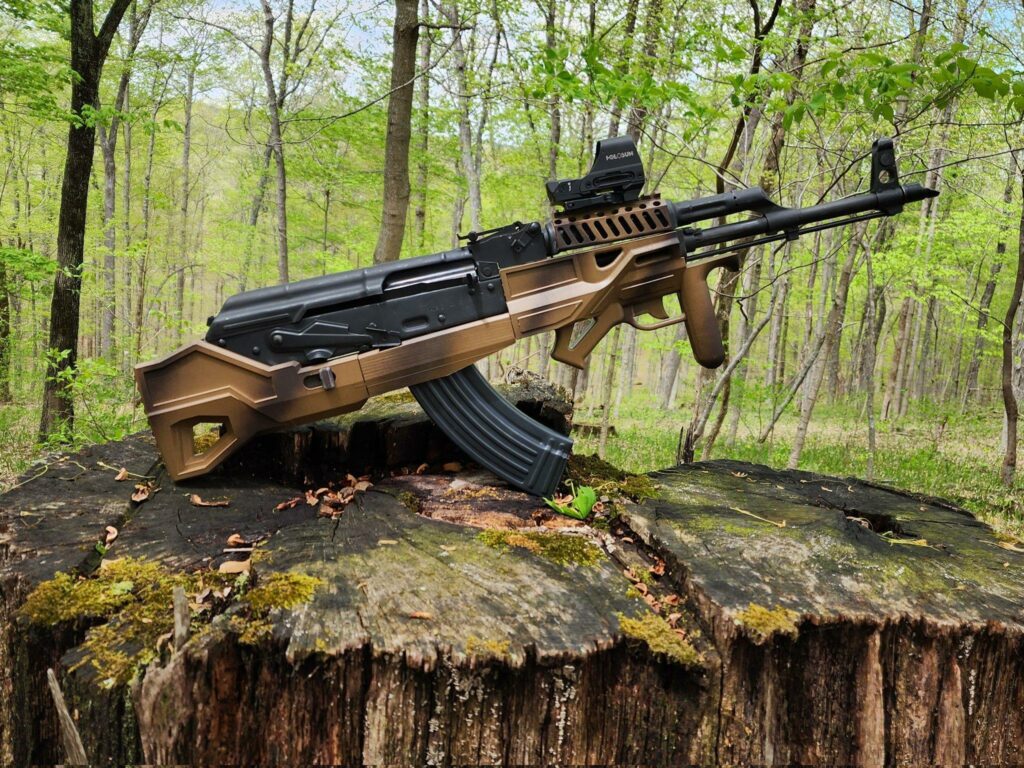

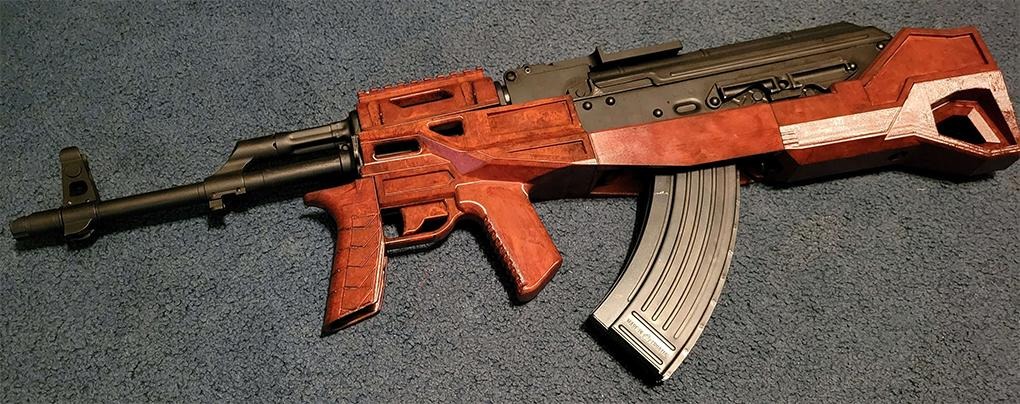

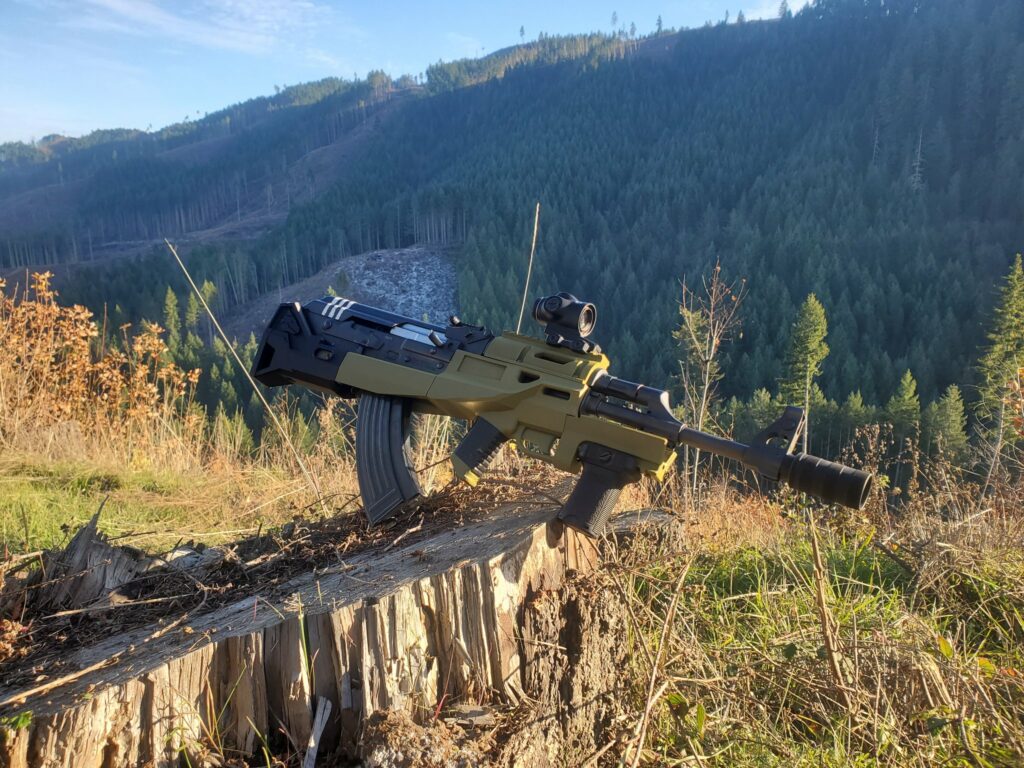

In The Wild
Photos
Videos
Grozn’t Chassis Technical Specs
The files are designed to accommodate PLA+ as a minimum, but documentation recommends carbo fiber nylon for best results. Documentation also recommends specific print settings. Durability may vary based on selected print settings and printing materials.
The Grozn’t comes in two variants, one with an angled foregrip and one with a pistol grip. AKs chambered in 7.62x39mm that are used with the pistol grip version will no be compatible with the following magazines:
- Magpul P-Mags
- Wafflemags
- Drum magazines
- 60 round “coffin” or double-wide magazines
- 40 round magazines
AKs chambered in 5.56 or 5.45x39mm do not experience these issues thanks to the reduced curvature of their magazines.
Grozn’t Chassis Parts List
Components
- Compatible firearm
Hardware
- 4 – M4 melt-in threaded inserts
- 4 – M4 x 10mm screws
- 2 – M5 melt-in threaded inserts
- 2 – M5 x 20mm screws
- 1 – M6 x 45mm grip screw
- 1 – M8 x 1.25mm thread (16mm L) (Yugo only)
Tools
- Utility knife
- Soldering iron
- Screwdriver
- Needle-nose pliers
- Sandpaper
- Super glue
- Snips/scissors
- A small length of excess filament
- Tweezers
- Electric drill + ³⁄₁₆” drill bit
Grozn’t Chassis Build Instructions
With the Grozn’t chassis, your compatible AK can step into the future of firearms design and styling. Download and build one today!
